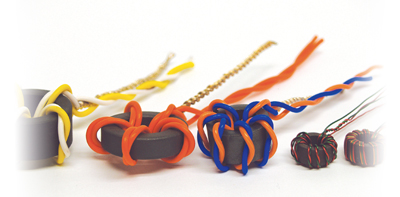

High Power Input & Output Combiners
|
![Combiner Image](picts/COM-LINEUP.jpg) |
- Conservative ratings.
- Designed for improved power handling capability.
- Low loss materials yield excellent circuit efficiency.
- Ideal for power upgrades using new high output transistors.
- Optimized for 1-55 MHz.
- Custom combiners available.
|
You may mix combiners for best price.
Part Number |
Description |
Core Size |
Rated Watts |
Peak Watts |
Price Ea.
1-9 |
Price Ea.
10-24 |
COM-2 |
Input/Output |
.5 x .5 |
300 |
500 |
Out of stock |
Out of stock |
COM-4 |
Output |
.5 x .8 |
900 |
1500 |
5.25 |
4.45 |
COM-5 |
Output |
.25 x 1.25 |
1150 |
1700 |
5.65 |
4.80 |
COM-6 |
Output |
.5 x 1.2 |
2800 |
3200 |
6.65 |
5.65 |
COM-10 |
Output* |
.5 X 2.4 |
5000 |
6000 |
19.95 |
18.95 |
COM-20 |
Output* |
1.0 x 2.4 |
10,000 |
15,000 |
Out of stock |
Out of stock |
*includes 100 Ohm termination resistor.
|
|
EMI Common-Mode Inductor
25A, 0.005Ω, 3000V
Mfg. VITEC
|
![54P2923 VITEC](choke/54P2923 IMAGE WITH DIMS.jpg) |
- Designed for input filter
circuits of switching power
supplies operating in the range of 100-300 KHz.
- Industry standard footprint.
- Meets 3mm creepage and
clearance spacings for
compatibility with IEC, VDE, UL, and CSA.
- Materials meet flammability
requirement of UL94V-0.
- Low cost.
- Manufactured to UL recognized 130 insulation system UL file #E107307.
Part #: 54P2923
Price: (1-9) $2.95 ea., (10-UP) 2.50 ea.
|
|
|
GE Combiner
|
![54P2923 VITEC](picts/19A129563G4.jpg) |
- Original OEM GE Mobile Radio part.
Part #: 19A129563G4
Price: (1-9) $2.75 ea., (10-UP) 2.60 ea. |
|
|
Special Wire for RF Transformers
|
Teflon Insulation |
Price Per Foot (10 foot minimum) |
Part Number |
Wire Ga. |
Color |
Notes |
10'-24' |
25'-99' |
TEF-8 |
8 |
- |
- |
$3.20 |
$3.00 |
TEF-10 |
10 |
Green or Red |
- |
2.50 |
2.30 |
TEF-12 |
12 |
Yellow or Gray |
- |
1.40 |
1.20 |
TEF-14 |
14 |
Red or Yellow |
- |
1.15 |
1.10 |
TEF-16 |
16 |
Green or Orange |
- |
.70 |
.63 |
TEF-18 |
18 |
Blue or Yellow |
- |
.60 |
.55 |
TEF-18TP |
18 |
- |
Twisted Red & White |
1.65 |
1.45 |
TEF-20 |
20 |
- |
- |
.45 |
.40 |
TEF-20TP |
20 |
- |
Twisted Orange & Green |
1.45 |
1.27 |
TEF-22 |
22 |
- |
- |
.32 |
30 |
TEF-24 |
24 |
- |
- |
.30 |
.28 |
|

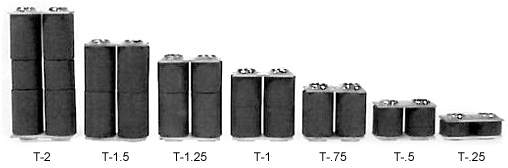

Broadband Ferrite Transformers
|
for 2-35 MHz Solid State Amplifiers
![broadband ferrite transformers](picts/transformers.jpg)
Absolutely the best quality Input & Output transformers for use in Linear and Class C amplifiers. Commonly used in commercially built amplifiers using SD1446, MRF454, MRF455, 2SC2290, 2SC2879, and similar transistors. Transformers are built in various lengths from 1/2" O.D. ferrite.
![Combiner Image](picts/transformer.jpg)
You may mix transformer lengths for best price.
Frequency 2-35MHz |
Part Number |
Notes |
Length |
Price Ea.
1-4 |
Price Ea.
5-9 |
Price Ea.
10-24 |
Price Ea.
25-up |
T.25 |
|
¼ |
$3.00 |
$2.75 |
$2.60 |
$2.40 |
T.5 |
Type 61 Material |
½ |
3.15 |
2.85 |
2.70 |
2.55 |
T.75 |
Type 61 Material |
¾ |
3.80 |
3.25 |
3.10 |
2.90 |
![Special!](picts/special.jpg)
T3/4-1 |
Type 61 Material.
Same as T-.75 without foot on back plate.
|
¾ |
3.25 |
2.75 |
2.60 |
2.45 |
T1 |
Type 61 Material |
1 |
3.85 |
3.50 |
3.25 |
3.00 |
T1.25 |
Type 61 Material |
1¼ |
5.55 |
4.20 |
3.90 |
3.65 |
T1.5 |
Type 61 Material |
1½ |
5.20 |
4.95 |
4.55 |
4.30 |
T2 |
Type 61 Material |
2 |
7.25 |
6.75 |
6.30 |
6.00 |
|
Part Number |
Notes |
Length |
Price Ea.
1-4 |
Price Ea.
5-9 |
Price Ea.
10-24 |
Price Ea.
25-up |
T.25-43 |
Type 43 Material |
¼ |
2.35 |
2.10 |
1.85 |
1.50 |
T.5-43 |
Type 43 Material |
½ |
2.50 |
2.25 |
2.00 |
1.65 |
T.75-43 |
Type 43 Material |
¾ |
3.10 |
2.85 |
2.50 |
2.05 |
T1-43 |
Type 43 Material |
1 |
3.25 |
2.95 |
2.60 |
2.15 |
T1.25-43 |
Type 43 Material |
1¼ |
4.05 |
3.70 |
3.25 |
2.70 |
T1.5-43 |
Type 43 Material |
1½ |
4.45 |
4.10 |
3.60 |
3.00 |
T2-43 |
Type 43 Material |
2 |
5.10 |
4.70 |
4.10 |
3.40 |
|
Wired Transformers
|
Four teflon covered, silver plated wires in parallel to give 3 Turns.
-
Type 61 Material
- Designed 1-30 MHz
- Large ferrite crossection
W 1.25" (30mm)
H 0.625" (15mm)
Core Length 1.26" (32mm)
Part #: T1.25X Price: $6.95
|
![wired transformer](picts/wired_transformer.jpg) |
|
