Model HD110
|
![LT83](picts/wavetek logo.gif) ![LT83](picts/HD110-with-wires.jpg) |
Heavy Duty construction with high voltage indication for safety. Valox case has tilt stand and firldhanger on back and is fully gasketed. Functions were selected based on what field service technicians said they needed to do their job.
- Completely sealed and environment proof meters
- VDC accuracy of 0.1%
- Large 20mm (0.8") high display
- Continuity test with continuous tone
- Superior 1500-hour battery life
|
Part # HD110 • $179.95 ea.
|
LT83
|
![LT83](picts/fieldpiece/Fieldpiece Logo.jpg) ![LT83](picts/LT83.gif) |
The model LT83 is an excellent meter for testing basic electrical parameters, including current, at a great price. Includes test leads and a rubber holster for added shock protection.
- Full function DMM at a great price: 5 functions, 25 ranges
- Works with all Fieldpiece accessories: 200mV ranges for 0.1 resolution on all accessory heads
- Measures current: from 0.1 microamps to 10 amps
Specifications:
Includes: meter with test leads.
Data Hold: "HOLD" button "locks" reading. Any range, any function.
Max Hold: "MAX" button displays the largest reading. Any range.
Continuity beeper: indicated by a continuous "beep".
Overload protection: 600VAC/600VDC for DCV, ACV, and phase indication. 500VAC/500VDC for ohms, and diode test. Amps and capacitance ranges are protected.
|
LT83 |
Ranges |
Best Accuracy* |
Resolution |
VAC |
200mV, 2000mV, 20V, 200V, 600V |
±(1%+4) |
0.1mV |
VDC |
200mV, 2000mV, 20V, 200V, 600V |
±(.5%+1) |
0.1mV |
AAC |
200µA, 200mA, 200mA, 10A,
(300A clamp optional) |
±(1.5%+4) |
0.1µA |
ADC |
200µA, 20mA, 200mA, 10A |
±(1%+1) |
0.1µA |
Resistance |
200W, 2KW, 20KW, 200KW, 2MW, 20MW |
±(1%+4) |
0.1W |
� � � � � �������*percent plus reading
Part # LT83 • Reg. $44.95 • Special $29.95 ea.
|
HB74
|
HB74 |
Ranges |
Best Accuracy |
Resolution |
VAC |
200mV, 2000mV, 20V, 200V, 850V |
±(1.2%+2 dgts) |
0.1mV |
VDC |
200mV, 2000mV, 200V, 850V |
±(0.5%+1 dgts) |
0.1mV |
AAC |
200µA, 200mA, 20A (30 sec max) |
±(1.5%+3 dgts) |
0.1µA |
ADC |
20µA, 200µA, 200mA, 20A (30 sec max) |
±(1.0%+1 dgts) |
0.01µA |
Resistance |
200W, 2KW, 20KW, 200KW, 20MW |
±(1.0%+1 dgts) |
0.1W |
Capacitance |
20µF, 200µF, 2000µF, 20KµF |
±(4.0%+10 dgts) |
0.1µF |
Phase Rotation |
80VAC to 450VAC (3 phase) |
|
"FORward" or "REVerse" |
Frequency |
200Hz, 2KHz |
±(0.5%+ 3dgts) |
0.1Hz |
Part # HB74 • Reg. $119.95 • Special $69.95 ea.
|

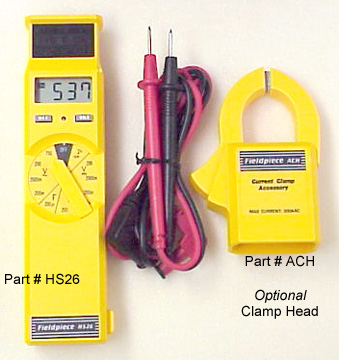

HS26 Stick Meter
with Optional Current Clamp Head
|
![HS26 Multimeter](picts/HS26.jpg) |
![LT83](picts/fieldpiece/Fieldpiece Logo.jpg)
• Clamp head snaps on to directly display AC current.
• Housing: small size, made of rugged Valox¨, "O" ring sealed.
• Hi voltage safety indicator ö red LED blinds and beeper sounds when probes touch voltage greater than 28V.
• Hold button - holds highest reading.
• Continuity beeper.
• Protection: input protected by MOVs to 6000V transients, voltage withstand capability to 1000V peak.
• Functions: volts, amps, ohms, capacitance.
|
DC Voltage
Ranges: 200mV, 2000mV, 200V
Resolution: 0.1mV on 200mV range
Accuracy: 0.5%±1
Input impedance: 10MW
Normal mode rejection ratio: >50dB @ >49Hz
Common mode rejection ratio: >120 dE up to 1000VDC
Resistance
Range: 200W, 200KW
Resolution: 0.1W on 200W range
Accuracy: 1%±1
Open circuit voltage: <0.3V, (<3V on 200W range)
Test current: <2mA
AC Voltage
Ranges: 200mV, 2000mV, 200W, 750V
Resolution: 1.0mV on 200 mV range
Accuracy: 1.2%±3 @ 50Hz to 500Hz, 2.0%±5 @ 500Hz to 1 KHz, 2.0%±5 @ 50Hz to 500Hz on 750VAC range
Input impedance: 10MW
Conversion type: Average measuring, rms indicating (sine wave)
Capacitance
Range: 200µF
AC Current
0-300A with ACH Clamp Head Accessory
UL Listed
|
HS26 Digital Multimeter
Part # HS26 • Reg. $79.95 • Special $29.95 ea.
ACH Current Clamp Head
Part # ACH • Reg. $29.95 • Special $19.95 ea.
|
|
LT17 Digital Multimeter
|
![LT17](picts/LT17.jpg) |
![LT83](picts/fieldpiece/Fieldpiece Logo.jpg)
HVAC/R Fieldiece at a Great Price
Measures temperature accurately, even when ambient temperatures are changing fast. Measures amps three ways: 200µA range for flame rectifier diodes; 20mA range for 4-20mA loops; current clamp for currents to 300AAC with up to 0.1A resolution. Use the optional current clamp for remotely measuring AC current on hard to reach wires. Ideal for electricians, motor and refrigeration servicing technicians.
- Volts, amps & ohms measurement
- Microamps: for flame rectifier diodes
- Temperature: 0.1°F resolution
- Capacitance: for motor start/motor run capacitors
- Frequency: for variable frequency motor controls
|
Specifications:
Includes: meter with rubber holster and test leads. Thermocouple and AC clamp available separately.
Continuity beeper: (<150W) indicated by a continuous beep within 100 msec.
Overload protection: 600VAC/600VDC for voltage ranges, 500VDC/350VAC (15 sec max) for 200mV ranges, 500VAC/500VDC for capacitance, ohms and diode test ranges. Current ranges protected by 0.1A/250V (5mm x 20mm fuse) model RF16.
|
LT17 |
Ranges |
Best Accuracy |
Resolution |
VAC |
200mV, 2000mV, 200V, 600V |
±(1.2%+4) |
100µv |
VDC |
200mV, 2000mV, 200V, 600V |
±(0.5%+1) |
100µv |
AAC |
200µA, 20mA, (300A clamp optional) |
±(1.5%+1) |
100nA |
ADC |
200µA, 20mA |
±(1.0%+1) |
100nA |
Resistance |
200W, 200KW, 20MW |
±(1.0%+4) |
0.1W |
Capacitance |
20µF, 200µF, 2KµF, 20KµF |
±(4.0%+10) |
0.01µF |
Frequency |
10 to 40KHz |
±(0.1%+3) |
1Hz |
Temperature |
-40°F to 750°F |
±(1°F w/cal) |
0.1°F |
Part # LT17 Reg. $89.95 Special $69.95 ea.
|
|
|
