Centralab
Band Switches & Parts
|
Part Number |
Photo* |
Poles |
Positions |
Shaft |
Contacts |
No. of
Decks
|
![AxB](picts/switch_specsTN.gif)
Dimensions (Inches) |
Notes |
Price Each |
A |
B |
JV9005 |
|
2
|
2-17
|
-
|
non-shorting |
2 |
2.8 |
1.85 |
Mfg. Centralab
limited supply
|
39.95 |
JV9002 |
|
3 |
2-5 |
- |
shorting |
1 |
2.8 |
1.85 |
Mfg. Centralab
limited supply |
29.95 |

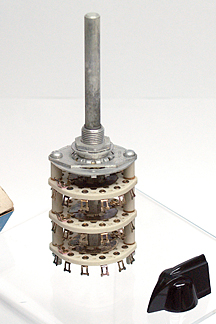

PA2022 |
|
6 |
6 |
- |
shorting |
3 |
. |
. |
Mfg. Centralab
limited supply |
39.95 |

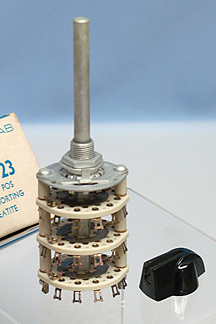

PA2023 |
|
6 |
6 |
- |
non-shorting, steatite |
3 |
1.44 |
1.315 |
Mfg. Centralab
limited supply |
39.95 |
PA2025 |
|
6 |
12 |
.25 |
non-shorting, steatite |
6 |
1.44 |
1.315 |
Mfg. Centralab
limited supply |
29.95 |
1413 |
|
2 |
11 |
- |
non-shorting, phenolic |
2 |
1.87 |
1.715 |
Mfg. Centralab
limited supply |
34.95 |
1453 |
|
2 |
3 |
- |
spring return, shorting |
1 |
1.88 |
0.45 |
Mfg. Centralab
limited supply |
19.95 |

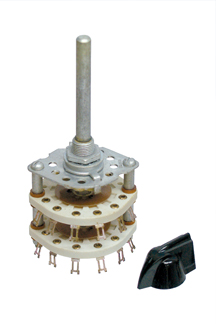

2510 |
|
2 |
6 |
- |
shorting, steatite |
2 |
1.87 |
1.715 |
Mfg. Centralab
limited supply |
34.95 |
PA300 |
|
|
1-3 sections |
4.435 |
- |
- |
1.425 |
0.87 |
Mfg. Centralab
limited supply |
8.95 |
PA301 |
|
|
4-6 sections |
6.5 |
- |
- |
1.425 |
0.87 |
Mfg. Centralab
limited supply |
12.95 |
PA302 |
|
|
7-9 sections |
8.5 |
- |
- |
1.425 |
0.87 |
Mfg. Centralab
limited supply |
15.95 |
PA9 |
|
6 |
2 |
- |
Non-short steatite
for PA3 series shafts |
- |
- |
- |
Mfg. Centralab
limited supply |
6.95 |
PA0 |
|
1 |
12 |
- |
shorting steatite
for PA5 series shaft
|
- |
- |
- |
Mfg. Centralab
limited supply |
6.95 |
*Photos are not to scale. |
