Bird Model 5000-XT Digital RF Power Meter
|
The hand-held digital power meter has been completely redesigned with the new Bird® 5000-XT. Ideally suited for field techs and engineers who need to make power measurements anywhere they go, the 5000-XT's new user interface has an intuitive, menu-driven design, making it the easiest to use on the market. It's operable even with one hand and compatible with all our field and legacy sensors.
|
Specifications
Display: Indoor/Outdoor Viewable Monochrome VGA Display with Backlight
Functions: Sensor Limited: VSWR, Peak Power, True Average Power, Crest Factor, CCDF, Burst Power and Data Logging
Sensor Detection: Automatic
Battery: Rechargeable, Field Replaceable, Lithium Ion Batteries
AC Adapter/ Charger: 115/230 VAC, 50/60 Hz
Battery Life: 20 Hours Continuous Usage with WPS Series Sensors, 60 Hours Continuous Usage with All Other Sensors
Calibration Interval: No calibration required
Languages: English, Mandarin, Spanish
Dimensions: 6.6” x 4.0” x 1.95” (168 mm x 102 mm x 50 mm)
Interface: Sensor: DB9, USB 2.0 SeaLatch Type A. PC: USB 2.0 SeaLatch Type B
Weight: (lbs.) 1.4 lbs (with battery)
Operating Temperature: 0 to +50 °C, (0 to 122 °F)
Storage Temperature: –20 to +50 °C, (-4 to 122 °F)
Drop Tested: EN 61010-1, MIL-STD-810F. MIL-PRF-28800F, Class 2
International Certs: CE, RoHS
Notes: Standard Accessories (included with 5000-XT). Soft Case and Carabiner, User Manual, Cigarette Adaptor, 10 ft. USB SeaLatch Cable,
Battery, Power Supply with (3) Adapters and 10 ft. DB9 Cable |
BIRD5000-XT • Price: $940.00
|
|
|

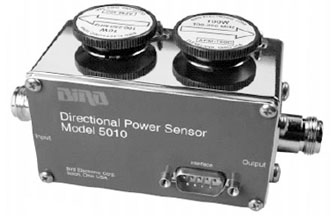

Bird 5010B Dual-Socket Thruline® Directional Power Sensor
|
![Bird 5010 Sensor](bird/bird5010.jpg) |
- Dual-element THRULINE® design for simultaneous forward and reflected power readings
- Measures true average power
- Peak power measurement (Model 5010B works with the Model 43 Elements only. For non-peak readings, use the DPM Element guide)
- ±5% of reading accuracy rivals thermal wattmeters in actual field use.
|
Bird's® Most Sophisticated Thruline® Sensor System is the Heart of the Model 5000-EX. Model 5010B replaces Model 5010. (Requires Bird Model 5000-EX, SA-1700P, SA-2500A, or SA-4000) The Model 5010B Dual-Socket THRULINE® Power Sensor is a precision 50-ohm 7/8-inch “Smart” Line Section which accepts Bird® digital-ready Plug-in DPM Elements. The Model 5010B Sensor provides true average and peak power readings for digital as well as traditional analog RF systems. The Model 5010B Power Sensor is compatible with many existing Bird® accessories for 7/8" line, including signal samplers, and over 20 types of QC connectors. QC Connectors can be changed rapidly and conveniently in the field by removing four screws from the connector.
|
|
Digitally-Modulated RF |
PCS and other digital wireless communication services
DAB, DTV, and HDTV pre- and post- combiner power measurements
Handles peak-to-average power ratios up to 10dB |
CW, AM, and FM |
Cellular Communication
Analog wireless applications
Television video and audio power
Aeronautical, military, public service, and mobile radio systems |
|
Specifications
Altitude: |
3,000 m (10,000 ft.) |
Calibration Cycle: |
1 year |
CE: |
CE compliant. Refer to Declaration of Conformity for specific standards |
Dimensions: |
5.0" x 2.4" x 2.0" (130 x 60 x 50 mm) |
Directivity: |
30 dB Typical (Exact value depends on element selected) |
Elements: |
DPM or 43 series elements. Select two elements form the same series, with RFL power 1/10 of FWD power |
Frequency Range: |
2 - 3600 MHz (Exact value depends on element selected) |
Humidity: |
95% max. (non-condensing) |
Impedance: |
50 Ohms nominal |
Insertion Loss: |
0.05 dB up to 1 GHz Max. |
Mechanical Shock: |
In accordance with MIL-PRF-28800F Class 3 |
Operating Temp.: |
-10 to +50 ºC (-14 to +122 ºF) |
Power Supply: |
From host instrument via cable |
RF Connector: |
QC Type (Female "N" normally supplied) |
Sensor Type: |
Thruline two-element line section |
Setting Time: |
2.5 seconds max. |
Storage Temperature: |
-40 to +75 ºC (-40 to +167 ºF) |
Vibration: |
In accordance with MIL-PRF-28800F Class 3 |
VSWR: |
1.05:1 up to 1 GHz Max. |
Weight: |
0.9 lb. (0.4 kg) nominal |
Downloads
BIRD5010-B • Price: $683.00
|
BIRD 5011-EF
Terminating Power Sensor |
![BIRD 5011-EF Terminating Power Sensor](picts/5011.gif) |
- Significant cost and time savings
- Easy To Use
- Field Ready
- No calibration required
|
Designed to make Terminating Power Measurements with the full flexibility of a portable precision instrument. (Requires Bird MODEL 5000, 5000-EX, SA-4000, SA-1700-P or SA-2500A)
|
Specifications
Accuracy: |
±5% of reading ±1 mW RSS (excluding mismatch uncertainty). When operating below 100 MHz and above 40°C, add 1%. |
Altitude: |
Up to 15,000 feet operating |
Frequency Range: |
40 MHz-4 GHz |
Humidity: |
95% max. (non-condensing) |
Input Connector: |
Precision N Male |
Input Impedance: |
50 Ohms (nominal) |
Input VSWR: |
Typical 1.03 (36.6 dB return loss); maximum 1.20 (20.8 dB return loss) |
Operating Temperature: |
-10 to 50°C (14 to 122°F) |
Output Connector: |
Male DB-9 to interface to Digital Power Meter or Site Analyzer |
Peak/Average Ratio: |
12 dB maximum |
Power Range: |
-20.000 to +10.000 dBm (10.1000 µW to 10.000 mW) |
Power Supply: |
From host instrument via cable connection |
Sensor Type: |
Terminating Power Sensor. Terminated average power measurement. |
Size: |
6" long (including connectors); 1.5" diameter |
Storage Temperature: |
-40 to 80°C (40 to 176°F) |
Warm Up Time: |
5 Minutes |
Weight: |
3/4 lb. Maximum |
Downloads
BIRD5011EF • Price: $1575.00 (40 MHz - 12 GHz)
BIRD5011 • Price: $1260.00 (40 MHz - 4 GHz)
|
|
BIRD 5012
Wideband Power Sensor , 350-4000MHz |
![BIRD 5011-EF Terminating Power Sensor](picts/5012.gif) |
- Easy to use & competitive price.
- Wide dynamic range (350 MHz - 4000 MHz) 30 dB Directivity-Up to 3 GHz; 28 dB up to 4 GHz
- Direct connection to pC, Digital Power Meter or Site Analyzer® - NO BLACK BOX!
- Directional-Forward and Reflected Power - No elements required!
|
Bird's® Site Management Solutions for Power Measurement. When combined with a Digital Power Meter, Site Analyzer Family of line and antenna analysis products, or a Personal Computer, the Wideband Power Sensor becomes an integral part of a very robust and sophisticated power measurement solution.
|
Specifications
Altitude: |
15,000 ft, operating |
Directivity: |
30 dB up to 3.0 GHz, 28 dB up to 4.0 GHz |
Frequency Range: |
350 MHz - 4 HGz |
Humidity: |
95% maximum (non-condensing) |
Impedance: |
50 Ohms (nominal) |
Input Connector: |
"N" Female |
Insertion Loss: |
<0.05 dB up to 1 GHz, <0.1 dB from 1 GHz to 4.0 GHz |
Insertion VSWR: |
1.05 up to 2.5 GHz, 1.10 from 2.5 to 4.0 GHz |
Interfaces: |
• DPM Interface: EIA-232, 9600 Baud, no parity, 8 data bits, 1 stop bit• PC Interface (1): EIA-232, 9600 Baud, no parity, 8 data bits, 1 stop bit • PC interface (2): USB 1.1 compatible interface |
Mechanical Shock: |
Designed to meet MIL-PRF-28800F class 3 |
Operating Temp.: |
-10 to +50°C (+14 to+122°F) |
Output Connector: |
"N" Female |
Power Measurement Range: |
0.15 W - 150 W average, 400 W peak |
Size: |
3.79 X 4.56 X 1.28 inches without connectors (4.73 X 4.56 X 1.28 inches including two "N" (F) connectors) |
Storage Temperature: |
-40 to +80°C (-40° to +176°F) |
Vibration: |
Designed to meet MIL-PRF-28800F class 3 |
Weight: |
1.1 lb. (0.5kg) |
Downloads
BIRD5012A • Price: $2310.00
|
|
