Attenuators
• Minimum Order: $25.00 in Parts
• Product Returns are subject to 15% Re-stock fee.

We now have a "Used Equipment" section packed with Wattmeters, Elements, Dummy Loads, Attenuators & Accessories! Also, check back here for updates. We will be stocking Aeroflex/Inment Attenuators any day now!

On this page


	50W Toggle Switch Bird RF Coaxial Fixed Attenuators Rotary Attenuators

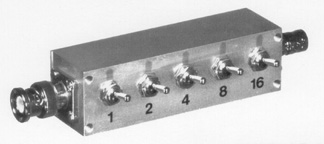

50 Ohm Toggle Switch Attenuator

Attenuation Range: 0-31 dB in 1 dB steps
Frequency Range: DC - 1,000 MHz
Attenuation Steps: 1, 2, 4, 8, 16 dB
Attenuation accuracy: ± .2 dB per step DC - 500 MHz
± .3 dB per step 501 - 500 MHz
Impedance: 50 Ohms
VSWR Maximum: 1.4:1 @ 1,000 Mhz
Power: 1 watt average
Insertion Loss: -1 dB max (switched all off)
BNC male and female ports

Part Number: RFA-4056-03 • $389.95 ea.

Bird RF Coaxial Attenuator

Output Connector on opposite side.

Power Rating: 100w continuous
Frequency Range & VSWR: Input 1.1 max DC to 500 MHz
Attenuation: 30 db
Accuracy: ± .5 dB (±.2 dB at 30, 100, 200, 300, 400 & 500 MHz when using calibration data)
Ambient Temperature Range: -40¡C to +45¡C
Connectors: QC type (female N)
Coolant: 0.35 ga. (1.3 liters) refined mineral oil
Operating Position: Horizontal only
Nominal Size: (includes connectors) 10-11/32" L x 8-1/2" H x 5-15/16" W

Part Number: BIRD8323 • Special $295.00 ea.

Part Number: BIRD8325 (special order, 500w) • Call for price

Fixed Attenuators

Attenuator

SMA

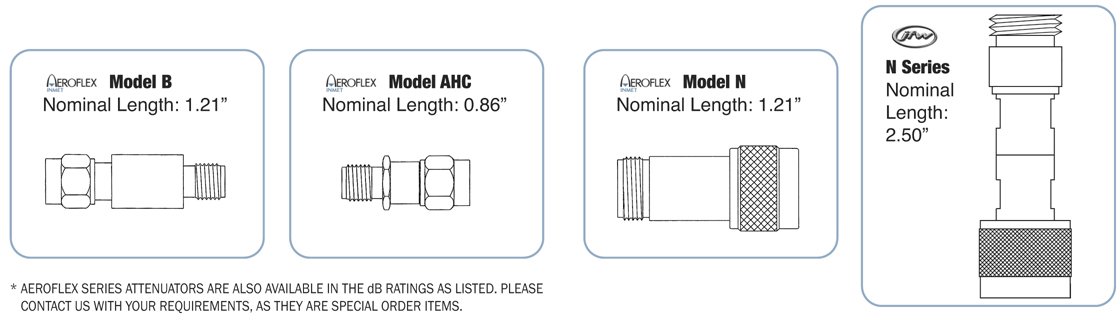

Photo / Model	Part Number	Conn.	Power	dB	Freq.	Price Ea.
Model B	6B-40	M-F	2W	40	DC-6 GHz	$37.95
Model AHC	AHC-30	M-F	2W	30	DC-6 GHz	17.95
	AHC-20	M-F	2W	20	DC-6 GHz	15.95
	AHC-10	M-F	2W	10	DC-6 GHz	15.95
	AHC-6	M-F	2W	6	DC-6 GHz	15.95
	AHC-3	M-F	2W	3	DC-6 GHz	15.95
*AHC SERIES ALSO AVAILABLE IN 1-10, 12, AND 15 dB
Model B	18B5W-30	M-F	5W	30	DC-18 GHz	48.95
	18B5W-20	M-F	5W	20	DC-18 GHz	48.95
	18B5W-10	M-F	5W	10	DC-18 GHz	48.95
	18B5W-3	M-F	5W	3	DC-18 GHz	48.95
*18B5 SERIES ALSO AVAILABLE IN 1-10, 12, AND 40 dB
Model B	18B10W-30	M-F	10W	30	DC-18 GHz	82.95
	18B10W-20	M-F	10W	20	DC-18 GHz	82.95
	18B10W-10	M-F	10W	10	DC-18 GHz	82.95
	18B10W-3	M-F	10W	3	DC-18 GHz	82.95
*18B10 SERIES ALSO AVAILABLE IN 1-10, 12, AND 40 dB
Model B	18B25W-30	M-F	25W	30	DC-18 GHz	129.95
Model B	18B25W-10	M-F	25W	10	DC-18 GHz	129.95
*18B25 SERIES ALSO AVAILABLE IN 3, 6, 20, AND 40 dB

BNC
Photo	Part Number	Conn.	Power	dB	Freq.	Price Ea.
Model B	9033-20	M-F	2W	20	DC-4 GHz	$29.95
Model B	9033-10	M-F	2W	10	DC-4 GHz	29.95

TYPE-N
Photo	Part Number	Conn.	Power	dB	Freq.	Price Ea.
N Series	50F-002N	M-F	1W	2	DC-2.2 GHz	$14.95
	50F-003N	M-F	1W	3	DC-2.2 GHz	14.95
	50F-004N	M-F	1W	4	DC-2.2 GHz	14.95
Model N	9070-40	M-F	2W	40	DC-6 GHz	24.95
	9070-30	M-F	2W	30	DC-6 GHz	21.95
	9070-20	M-F	2W	20	DC-6 GHz	21.95
	9070-10	M-F	2W	10	DC-6 GHz	19.95
	9070-6	M-F	2W	6	DC-6 GHz	19.95
	9070-3	M-F	2W	3	DC-6 GHz	19.95
*9070 SERIES ALSO AVAILABLE IN 1-10, 12, AND 15 dB
Model N	6N5W-30	M-F	5W	30	DC-6 GHz	49.95
	6N5W-20	M-F	5W	20	DC-6 GHz	49.95
	6N5W-10	M-F	5W	10	DC-6 GHz	49.95
	6N5W-3	M-F	5W	3	DC-6 GHz	49.95
*6N5W SERIES ALSO AVAILABLE IN 1-12, 15, AND 40 dB
Model N	6N10W-30	M-F	10W	30	DC-6 GHz	82.95
	6N10W-20	M-F	10W	20	DC-6 GHz	82.95
	6N10W-10	M-F	10W	10	DC-6 GHz	82.95
	6N10W-3	M-F	10W	3	DC-6 GHz	82.95
*6N10W SERIES ALSO AVAILABLE IN 1-10, 12, AND 40 dB
Model N	6N25W-30	M-F	25W	30	DC-6 GHz	139.95
Model N	6N25W-10	M-F	25W	10	DC-6 GHz	139.95
*6N25W SERIES ALSO AVAILABLE IN 3, 6, 20, AND 40 dB
	34-20-34	M-F	25W	20	DC-4 GHz	99.95

Rotary Attenuators

Mfg. by JFW	Part Number:	50R-028
	Frequency Range:	DC-1 GHz
	Attenuation Value:	0-1 dB / 0.1dB Step
	Input Power:	2 Watt average, 1 KW peak
	Connector:	BNC Female
	Impedance:	50 Ohms
	Data Sheet :	50R-028 Data Sheet.pdf
	Price Each:	$ 59.95

Mfg. by Trilithic	Part Number:	RA50BNC
	Frequency Range:	DC-2 GHz
	Attenuation Value:	0-10 dB / 1dB Step
	Input Power:	1 Watt average, 750 W peak
	Connector:	BNC Female
	Impedance:	50 Ohms
	Data Sheet :	RA-50 Data Sheet.pdf
	Price Each:	$ 79.95

Dual Concentric Rotary Attenuator Mfg. by JFW	Part Number:	50DR-055
	Frequency Range:	DC-2 GHz
	Attenuation Value:	0-30 dB / 1dB Step
	Input Power:	2 Watt
	Connector:	SMA Female / SMA Female
	Impedance:	50 Ohms
	Data Sheet :	50DR-XXX Drawing.pdf
	Price Each:	$ 139.95
