Directional Couplers

Single Directional Coupler with cover/bracket.

All couplers accept standard Bird Elements, Bird Quick Change Connectors or Unidapt Flange Adapters. Mounting brackets included with 4522-002-5. These couplers are designed to match standard BIRD meter Part Number 2080-002. Part Number: 4230-059     •      $169.95 ea.

Dual Directional Coupler

Ideal for remote measurements. Switch between the two elements for forward & reverse power reading. Part Number: 4522-002-5     •      $215.00

Connector Cables

Special meter connecting cable for Bird Directional Couplers. Allows 2080-002 meter to be remotely operated from Directional Couplers above. Part Number Description Price Ea. 7500-076 Connector Installation Instructions $15.95 7500-072-1 39 1/2" Cable  24.95 7500-072-3 15' Cable  27.95 7500-072-25 25' Cable  36.95

Replacement Meters for the BIRD 43

Fix that broken wattmeter with a new calibrated BIRD Meter movement. This meter may be connected to BIRD directional coupler for remote measurement. Part Number: 2080-002     •     $95.00 ea.

Replacement Feet for Bird Wattmeters

photo coming soon! 4 per package Part Number: RP5-1388      •     $2.00

Bird Power vs. VSWR Chart

Nomograph gives fast reference from Power to VSWR. Made of laminated plastic for heavy use. 5 1/2" x 6 1/2", 2 sided. Part Number: 4400-012     •     $10.00 ea.

Bird Variable RF Signal Sampler

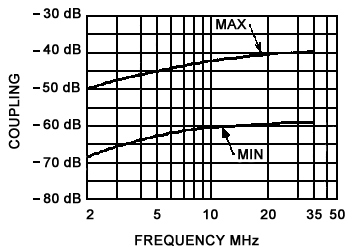

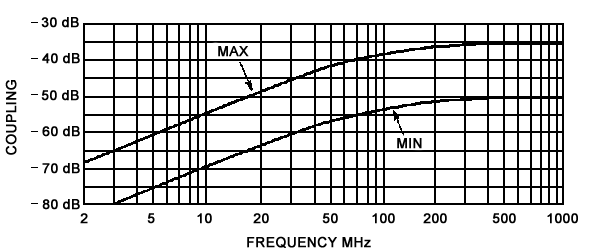

Bird Models 4273 (1.5 to 35 MHz, 5 kW max.) and Model 4275 (20 to 1000 MHz, 2 kW max.) are "stand alone", wide-range, THRULINE® RF coupling probes for spectrum analysis, RF signal observation on a scope, or frequency counting and control. They feature very low VSWR throughout a broad frequency and attenuation range. Insertion loss is a negligible 01. dB. Both Models produce and unrectified sample at the BNC port that is adjustable. Once adjusted, the setting can be locked in place. The main power line connectors are Bird QC type.   4273 Specifications 4275 Specifications Impedance: 50 ohms nominal Coupling: Adjustable as shown within ±3dB Ambient Temperature Range: -40°C to +45°C Connectors: QC type as specified Nominal Size: 2 51/64" L x 2 7/8" W x 1 1/4" D Weight: 10 oz. Power Rating: 5 kW max 1 kW max Frequency Range: 1.5 - 35 MHz 20 - 1000 MHz Insertion VSWR: with N connectors 1.07 dB max. with N connectors 0.1 dB max. 4273 Pricing Part Number QC Connectors Price 4273 No Connectors* $242.00 4273-020 N: Male/Female   293.00 4273-025 N: Female/Female   280.00 4273-030 UHF: Male/Female   330.00 4273-035 UHF: Female/Female   280.00   4275 Pricing Part Number QC Connectors Price 4275 No Connectors* $242.00 4275-020 N: Male/Female   293.00 4275-025 N: Female/Female   280.00 4275-030 UHF: Male/Female   330.00 4275-035 UHF: Female/Female   280.00 *Select from our list of QC Connectors.
