CX-1054A

CX-1054A
Specifications
Impedance: 50 Ohms.

VOLTAGE
Pull in: 10.0Vdc-14Vdc(12Vdc Nominal)
Drop out: 3.0Vdc Min.
Current: 80mA@12Vdc 20°C
Coil Resistance 120 Ohms. 10% 20°C

MECHANICAL
Contact Arrangement: SPDT
RF Contacts: Break before make
Operational Temperature: -25°C to 50 °C
Weighting: Approx. 95gs.
Mounting: Four Screws
Cable Connections: 1 N Type female connector; Directly connect cables.

ELECTRICAL CHARACTERISTICS
Frequency (MHz) VSWR (Max) Isolation -dB[min] Ins. Loss -dB[max] Input (W)
50
1.03
55
0.08
250
150
1.03
51
0.1
250
500
1.05
47
0.15
200
1000
1.06
34
0.2
150
1500
1.2
28
0.25
100
2000
1.2
21
0.3
50

SWITCHING TIME
Pull in: 15ms typical
Drop out: 10ms typical
Life Expectancy: 1,000,000 Operation Min.

COIL CHARACTERISTICS
Nominal Voltage: 12Vdc
Voltage Range: 10Vdc-14Vdc
Coil Resistance Ohms: 120
Mounting: -

SCHEMATIC

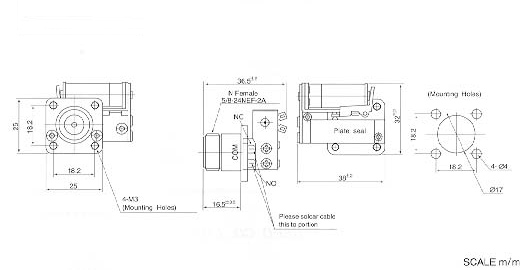

DIMENSIONS

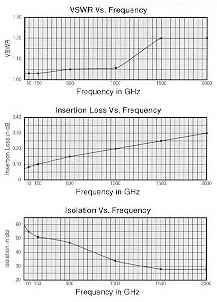

TYPICAL OPERATING CURVES
