CX-120A

CX-120A
Specifications
Impedance: 50 Ohms.

VOLTAGE
Pull in: 10Vdc-14Vdc(12Vdc Nominal)
Drop out: 3Vdc Min.
Current: 61mA@12Vdc 20°C
Coil Resistance 196 Ohms. 10% 20°C

MECHANICAL
Contact Arrangement : SPDT
Operational Temperature: -25°C to 50°C (Max temp. rise: 20°C)
Weighting: Approx. 70gs.
Mounting: 2 Screws

ELECTRICAL CHARACTERISTICS
Frequency (MHz) VSWR (Max) Isolation -dB[min] Ins. Loss -dB[max] Input (W)
50
1.05
60
0.05
250
150
1.1
50
0.1
200
500
1.3
40
0.2
150
1000
1.4
29
0.25
150

SWITCHING TIME
Pull in: 10Vdc-14Vdc(12Vdc Nominal)
Drop out: 3Vdc Min.
Life Expectancy: 1,000,000 Operation Min.

COIL CHARACTERISTICS
Nominal Voltage: 12Vdc
Voltage Range: 10Vdc-14Vdc
Coil Resistance Ohms: 196
Mounting: 2 Screws

SCHEMATIC

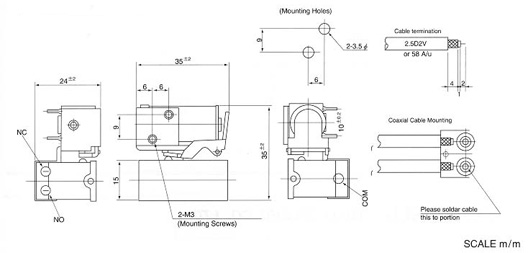

DIMENSIONS

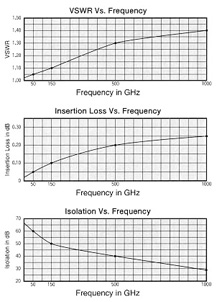

TYPICAL OPERATING CURVES
Back to Coaxial Relays
