CX-140D

CX-140D
Specifications
Impedance: 50 Ohms.

VOLTAGE
Pull in: 9.0Vdc-15Vdc(12Vdc Nominal)
Drop out: 1.5Vdc Min.
Current: 80mA@12Vdc 20°C
Coil Resistance 150 Ohms. 10% 20°C

MECHANICAL
Contact Arrangement: SPDT
RF Contacts: Break before make
Operational Temperature: -50°C to 70 °C
Weighting: Approx. 95gs.
Mounting: Four Screws
Cable Connections: N Female; directly connect cable

ELECTRICAL CHARACTERISTICS
Frequency (MHz) VSWR (Max) Isolation -dB[min] Ins. Loss -dB[max] Input (W)
50
1.03
55
0.08
250
150
1.03
51
0.1
250
500
1.05
47
0.15
200
1000
1.06
34
0.2
150
1500
1.2
28
0.25
100

SWITCHING TIME
Pull in: 15ms typical
Drop out: 10ms typical
Life Expectancy: 1,000,000 Operation Min.

COIL CHARACTERISTICS
Nominal Voltage: 12Vdc/24Vdc
Voltage Range: 9Vdc-15Vdc/
19Vdc-26Vdc
Coil Resistance Ohms: 150/600
Mounting: -

SCHEMATIC

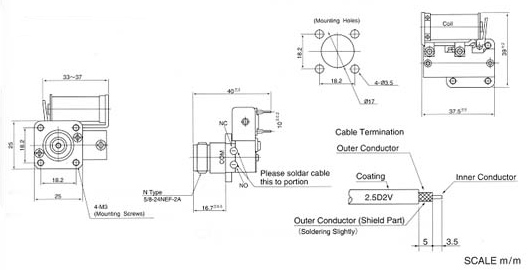

DIMENSIONS

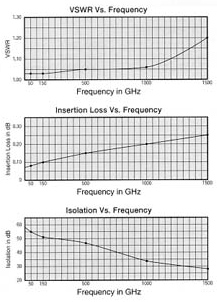

TYPICAL OPERATING CURVES
