	CX-140M Specifications
	Impedance: 50 Ohms.

VOLTAGE

Pull in:	9.0Vdc-15Vdc(12Vdc Nominal)
Drop out:	1.5Vdc Min.
Current:	80mA@12Vdc 20°C
Coil Resistance	150 Ohms. 10% 20°C

MECHANICAL

Contact Arrangement:	SPDT
RF Contacts:	Break before make
Operational Temperature:	-50°C to 70 °C
Weighting:	Approx. 95gs.
Mounting:	Four Screws
Cable Connections:	M(UHF) Female; directly connect cable

ELECTRICAL CHARACTERISTICS

Frequency (MHz)	VSWR (Max)	Isolation -dB[min]	Ins. Loss -dB[max]	Input (W)
50	1.03	55	0.08	250
150	1.03	51	0.1	250
500	1.05	47	0.15	200

SWITCHING TIME

Pull in:	15ms typical
Drop out:	10ms typical
Life Expectancy:	1,000,000 Operation Min.

COIL CHARACTERISTICS

Nominal Voltage:	12Vdc/24Vdc
Voltage Range:	9Vdc-15Vdc/ 19Vdc-26Vdc
Coil Resistance Ohms:	150/600
Mounting:	-

SCHEMATIC

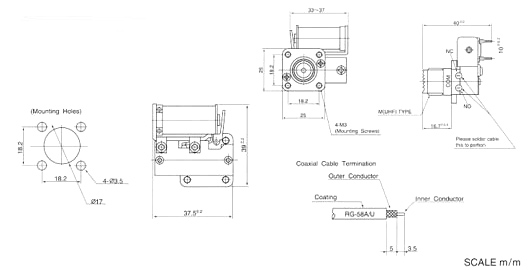

DIMENSIONS

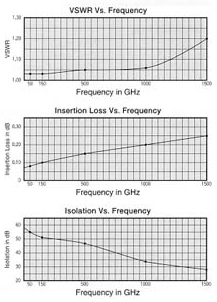

TYPICAL OPERATING CURVES
