CX-540D

CX-540D
Specifications
Impedance: 50 Ohms.

VOLTAGE
Pull in: 9.0Vdc-16.5Vdc(12Vdc Nominal)
Drop out: 1.5Vdc Min.
Current: 160mA@12Vdc 20°C
Coil Resistance 75 Ohms. 10% 20°C

MECHANICAL
Contact Arrangement: SPDT
Operational Temperature: -50°C to 70 °C
Weighting: Approx. 230gs.
Mounting: Four Screws
Cable Connections: 3 BNC Type female connectors

ELECTRICAL CHARACTERISTICS
Frequency (MHz) VSWR (Max) Isolation -dB[min] Ins. Loss -dB[max] Input (W)
50
1.005
65
0.1
0.35
150
1.01
60
0.15
0.3
500
1.03
53
0.18
0.3
1000
1.05
46
0.2
0.25
1500
1.17
42
0.2
0.2
2000
1.2
39
0.25
0.15

SWITCHING TIME
Pull in: 20ms typical
Drop out: 15ms typical
Life Expectancy: 1,000,000 Operation Min.

COIL CHARACTERISTICS
Nominal Voltage: 12Vdc/24Vdc
Voltage Range: 9Vdc-16.5Vdc/
18Vdc-26.5Vdc
Coil Resistance Ohms: 75/300
Mounting: -

SCHEMATIC

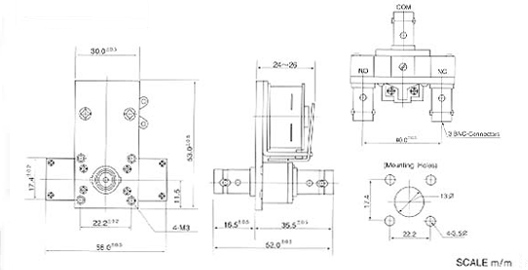

DIMENSIONS

TYPICAL OPERATING CURVES
