	CX-600M Specifications
	Impedance: 50 Ohms.

VOLTAGE

Pull in:	9.0Vdc-16.5Vdc(12Vdc Nominal)
Drop out:	1.5Vdc Min.
Current:	160mA@12Vdc 20°C
Coil Resistance	75 Ohms. 10% 20°C

MECHANICAL

Contact Arrangement:	SPDT
Operational Temperature:	-50°C to 70 °C
Weighting:	Approx. 230gs.
Mounting:	Two Screws
Cable Connections:	3 M (UHF) Type female connectors

ELECTRICAL CHARACTERISTICS

Frequency (MHz)	VSWR (Max)	Isolation -dB[min]	Ins. Loss -dB[max]	Input (W)
50	1.03	60	0.07	1.0 CW
150	1.1	48	0.1	1.0 CW
500	1.15	37	0.15	0.8 CW

SWITCHING TIME

Pull in:	20ms typical
Drop out:	15ms typical
Life Expectancy:	1,000,000 Operation Min.

COIL CHARACTERISTICS

Nominal Voltage:	12Vdc/24Vdc
Voltage Range:	9Vdc-16.5Vdc/ 18Vdc-26.5Vdc
Coil Resistance Ohms:	75/300
Mounting:	-

SCHEMATIC

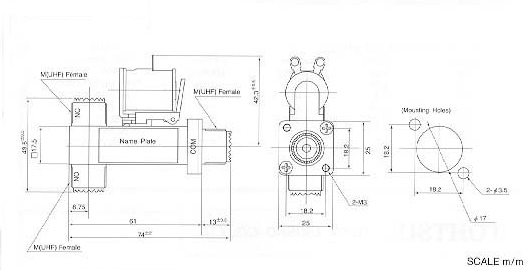

DIMENSIONS

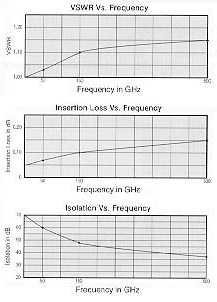

TYPICAL OPERATING CURVES
