CX-600NL

CX-600NL
Specifications

Impedance: 50 Ohms.

VOLTAGE
Pull in: 10.0Vdc-14.0Vdc(1.0Vdc Nominal)
Drop out: 3.0Vdc Min.
Current: 160mA@12Vdc 20°C
Coil Resistance 75 Ohms. 10% 20°C

MECHANICAL
Contact Arrangement: SPDT
Switching Operation: Failsafe
Operational Temperature: -25°C to 50°C
Weighting: Approx. 240gs.
Mounting: Two Screws
Cable Connections: 3 N Type female connectors

ELECTRICAL CHARACTERISTICS
Frequency (MHz) VSWR (Max) Isolation -dB[min] Ins. Loss -dB[max] Input (KW)
50
1.03
60
0.07
1.0
150
1.1
48
0.9
1.0
500
1.15
35
0.1
0.8
1000
1.2
28
0.15
0.5

SWITCHING TIME
Pull in: 20ms max
Drop out: 15ms max
Life Expectancy: 1,000,000 Operation Min.

COIL CHARACTERISTICS
Nominal Voltage: 12Vdc/24Vdc
Voltage Range: 10Vdc - 14Vdc
Coil Resistance Ohms: 75 10% ±20°C
Mounting: -

SCHEMATIC

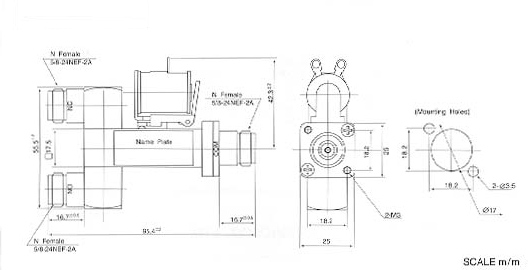

DIMENSIONS

TYPICAL OPERATING CURVES
