RF Parts Company ~ CX-800NC Specs

	CX-800NC Specifications
	Impedance: 50 Ohms.

VOLTAGE

Pull in:	10Vdc-14Vdc(12Vdc Nominal)
Drop out:	1.5Vdc Min.
Current:	250mA@12Vdc 20°C
Coil Resistance	48 Ohms. 10% 20°C

MECHANICAL

Contact Arrangement:	SPDT
Operational Temperature:	-50°C to 70 °C
Weighting:	Approx. 365gs.
Mounting:	2 Mounting Holes
Cable Connections:	2 N Type female connectors; directly connect cables

ELECTRICAL CHARACTERISTICS

Frequency (MHz)	VSWR (Max)	Isolation -dB[min]	Ins. Loss -dB[max]	Input (W)
50	1.1	50	0.15	1000 CW
150	1.15	48	0.15	1000 CW
500	1.15	37	0.2	800 CW
1000	1.18	28	0.2	500 CW
1500	1.2	26	0.2	350 CW
2000	1.3	23	0.3	150 CW

SWITCHING TIME

Pull in:	20ms typical
Drop out:	15ms typical
Life Expectancy:	1,000,000 Operation Min.

COIL CHARACTERISTICS

Nominal Voltage:	12Vdc/24Vdc/26.5Vdc
Voltage Range:	10Vdc-14Vdc/ 19Vdc-26Vdc/20Vdc-30Vdc
Coil Resistance Ohms:	48/192/245
Mounting:	-

SCHEMATIC

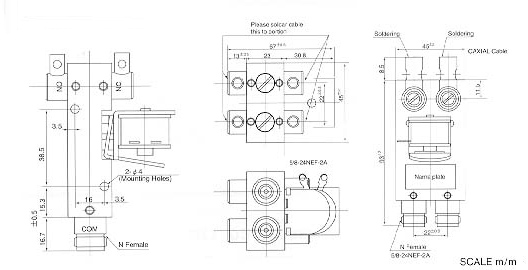

DIMENSIONS

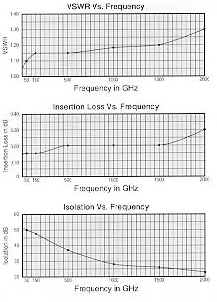

TYPICAL OPERATING CURVES
