Power/SWR Meters
• Minimum Order: $25.00 in Parts
• Product Returns are subject to 15% Re-stock fee.

SX Series

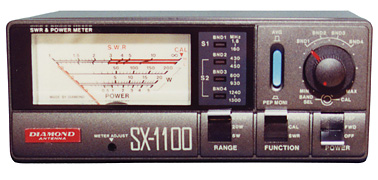

Installs between transmitter and antenna for measurement of forward and reflected average (CW) and SSB (P.E.P.) RF power, and SWR. Accuracy is approximately that of the Bird 43; carrier measurements ±5% (typical) of full scale depending on frequency and power. Illuminated meter, sensor switch and LED indicator. Power ratings listed below are for intermittant operation. For continuous mode (CW, FM etc.) maximum ratings vary with frequency and are listed in the instructions. All models have SO-239 connectors except SX-1100 with Type-N. SX600 and SX1100 have dual direction couplers. Requires 12 VDC if you wish to light meter.

Size: 6"h x 2 1/2"w x 4"d, Weight: 2 lbs.

Model Number	Power	Freq. Range	Display	Price Each
SX100	3KW	1.6 - 60 MHz	30W / 300W / 3KW	$ 144.95
SX200	200W	1.8 - 200 MHz	5W / 20W / 200W	99.95
SX400	200W	140 - 525 MHz	5W / 20W / 200W	114.95
SX600	200W	1.8 - 160 MHz + 140 - 525 MHz	5W / 20W / 200W	184.95
SX1100	200W	1.8 - 160 MHz + 430 - 1300 MHz	5W / 20W / 200W	234.95

Diamond Wattmeters

SX20C

SX240C

The Diamond SX20C and SX40C are compact Wattmeters featuring cross needle meter for measuring power and SWR simultaneously.

Model Number	Power Ranges	Freq. Range	Size	Price Ea.
SX20C	30w & 300w	3.5-30 / 50-54 / 130-150 MHz	3 5/16" W x 3 5/16" H x 3 3/4" D	$89.95
SX40C	15w & 150w	144 - 470 MHz	3 5/16" W x 3 5/16" H x 3 3/4" D	82.95
SX240C	30w, 300w, and 3kw (HF only)	1.8-54 / 140-470 MHz (220 MHz w/ correction factor)		349.95

Refurbished Meters

These refurbished meters are offered at substantial savings over their new stock meters.

All meters are in excellent mechanical, electrical and cosmetic condition. Meters have been calibrated, and meet the same specifications as new stock, and include the 1 Year Limited Warranty. Supply of Refurbished Meters is Limited to Stock on Hand. Please call for availability.

Model Number	Power	Freq. Range	Display	New Price	Refurbished Price
SX100-R	3KW	1.6 - 60 MHz	30W / 300W / 3KW	$ 144.95	$122.95
SX200-R	200W	1.8 - 200 MHz	5W / 20W / 200W	99.95	89.95
SX400-R	200W	140 - 525 MHz	5W / 20W / 200W	114.95	105.95
SX600-R	200W	1.0 - 160 MHz + 140 - 525 MHz	5W / 20W / 200W	184.95	152.96
SX1100-R	200W	1.8 - 160 MHz + 430 - 1300 MHz	5W / 20W / 200W	234.95	199.95

Price and availability subject to change without notice.
