Filters
• Minimum Order: $25.00 in Parts
• Product Returns are subject to 15% Re-stock fee.











 Feed-Thru Noise Filters

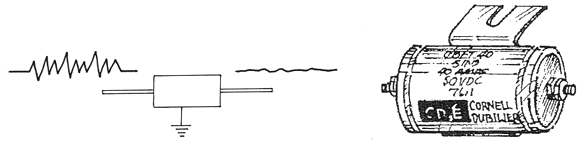

      CBFT40



      Designed to filter conducted electrical noise at its source.

        Recommended for air conditioners, fan motors, windshield wipers, defoggers, air horns, fuel pumps, etc.

        Mfg. in the U.S. by Cornell-Dubillier, blister packed.








Part Number: CBFT40



            0.5uf  40A, 50 VDC



$13.95 ea.






Part Number: CBFT60



            0.5uf  60A, 50 VDC



15.95 ea.

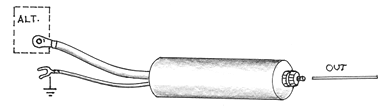

      CB60 feed-thru noise filter



        Block out unwanted noise caused by Alternator/Generator Systems.

        Designed with capacitive and inductive elements to provide a broad range (2-400 MHz) of noise suppression generated at different speeds.



        For all standard 2 way communication systems: trucks, cars and boats.










Part Number: CB60

          60A

$17.95 ea.






















 Hi Pass Filters
















          HP-40 Hi Pass Filter





Part Number: HP-40


Hi-Pass Filter

            54 MHz to 1 GHz

            Cut Band 5-40 MHz



$5.95 ea.






















 Low Pass Filters

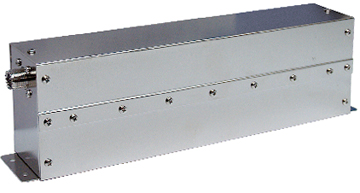

          DF3000





Part Number: DF3000


Low-Pass Filter

            3kW PEP, 30 MHz


$69.95






















 TV Interference Filters






















Part Number: TV-HPF



      Standard Type F Connector, 75 Ohm



$8.95 ea.



























 EMI Filters






Rated 120/250V, 50/60 Hz



  Ideal line filter for protection of sensitive equipment, ham amplifiers, industrial equipment, etc.



  All New   •   Manufacturer's Excess







Part Number
Photo*
Mfg.
Amps
VAC
Sections
Connections
W x L x H
Price Each



  03DPCGS5
  03DPCGS5
  Delta
  3

  2
  Terminal
  2” x 6.3” x 1.8”
    $  6.95




  MBS4850S
  MBS4850S EMI Filter
  Lambda
  50

  1
  10-32 thd
  2.8” x 4.5” x 1.2”
    Reg. $59.95



      Special: $14.95




F2924

Corcom
15
250
2
Terminal
2” x 6.5” x 2.8”
19.95




  5004-6091
  5004-6091 EMI Filter

    Mounting Plate on one side only.

  Potter
  15
  250
  -
  10-32 thd
  4” x 6.875” x 2.25”
  29.95




  F1200DD30

  Curtis
  15

  1
  6-32 thd
  4.1” x 5.1” x 1.5”
  14.95



20DCGS4

Delta
20

1
6-32 thd
3.4” x 5.4” x 2.3”
14.95



30G41T

Stancore
30

1
6-32 thd
4.3” x 5.3” x 1.6”
17.95



  NF21244

  Cor.Dub.
  6

  2
  Terminal
  2.3” x 4 ” x 1.8”
  7.70




  LF208VK
  .

    .
  Tokin
  8
  250
  1
  Wire
  4” x 4 ” x 1.8”
  Regular $58.95

    Special:
      $11.95




  JN64-1060
  .
  Sprague
  15
  120
  1
  Wire
  1.75” x 1.24 ” x 1.14”
  Special:
    $5.95




  05-TNF-0214
  .

    Limited Quantity
  TODAI
  5
  120/240

  TERM
  2” x 2” x 1.25”
  Internet Special:

    $7.95




  05-TNF-0202
  .

    Limited Quantity
  TODAI
  5
  120/240

  6/32
  2” x 2” x 1.25”
  Internet Special:

    $7.95




  10-TNF-0214
  .

    Limited Quantity
  TODAI
  10
  120/240

  TERM
  2” x 2” x 1.25”
  Internet Special:

    $8.95




  10-TNF-0202
  .

    Limited Quantity
  TODAI
  10
  120/240

  6/32
  2” x 2” x 1.25”
  Internet Special:

    $8.95




  20-TMF-0402
  .

    Limited Quantity
  TODAI
  20
  120/240

  6/32
  2.47” x 2” x 1.5”
  Internet Special:

    $12.95




  10-TMF-0402
  .

    Limited Quantity
  TODAI
  10
  120/240

  6/32
  2.47” x 2” x 1.5”
  Internet Special:

    $11.95




  10-TWF-1102
  .

    Limited Quantity
  TODAI
  10
  120/240

  6/32
  2.47” x 2” x 1.5”
  Internet Special:

    $11.95




  STD-20
  .

    Limited Quantity
  SRE
  20
  115/250

  6/32
  5.25” x 3” x 3”
  Internet Special:

    $22.95





* photos are not to scale















Price and availability subject to change without notice.
