RF Parts Company

Project Boxes & Cases
• Minimum Order: $25.00 in Parts
• Product Returns are subject to 15% Re-stock fee.


On this page


Hammond Manufacturing  Heavy Duty Aluminum Chassis Cases & Covers
PHOTO PART NUMBER Dimensions
W" x D" x H" x thick" 		Price Each
1-5 6-24
Cases

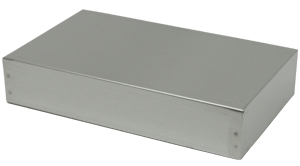

CHAS1444 Series Aluminum Chassis
CHAS1444-8
6 x 4 x 2 x .040
$ 9.95
$ 8.50
CHAS1444-16
10 x 6 x 2 x .040
14.30
12.10
CHAS1444-20
17 x 4 x 3 x .040
25.95
22.00
CHAS1444-22
12 x 8 x 2 x .040
26.15
22.00
CHAS1444-24
12 x 8 x 3 x .051
26.15
22.00
CHAS1444-26
16 x 8 x 2 x .051
25.35
21.35
CHAS1444-30
17 x 10 x 2 x .051
31.35
26.50
CHAS1444-32
17 x 10 x 3 x .051
34.65
26.70
CHAS1444-33
17 x 10 x 4 x .051
50.90
43.00
Matching Covers

COV1434-8
6 x 4 x .040
5.25
4.45
COV1434-16
10 x 6 x .040
7.90
6.65
COV1434-20
17 x 4 x .040
8.45
7.15
COV1434-22
12 x 8 x .051
11.50
9.70
COV1434-26
16 x 8 x .051
11.00
9.25
COV1434-30
17 x 10 x .051
11.80
9.95


Heavy Duty Steel Chassis
Plated, ideal for applications where extra strength is required, such as power supplies, etc.
Part # Notes Dimensions
W" x D" x H" 		Price Each
CHAS 7x5x2-S
Cad plated steel
7" x 5 " x 2"
$5.95
CHAS 7x7x2-S
Cad plated steel
7" x 7" x 2"
5.95
CHAS 17x13x2-S
Cad plated steel
17" x 13 " x 2"
9.95

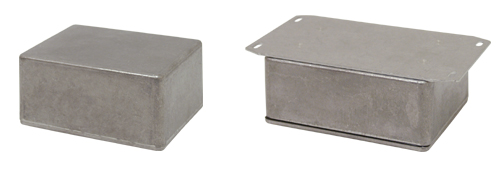

Hammond Manufacturing   Die Cast Enclosures (Hardware Included)
BOX1590
Part # Notes Dimensions
W" x D" x H" 		Price Each
1-4 5-24
BOX1590A

3.62 x 1.50 x 1.22
7.35
6.85
BOX1590AF
With mounting flange
3.52 x 1.80 x 1.22
10.95
9.20
BOX1590B

4.37 x 2.37 x 1.22
8.40
7.60
BOX1590BB

4.68 x 3.68 x 1.33
10.95
10.35
BOX1590BF
With mounting flange
4.37 x 2.37 x 1.22
12.60
10.50
BOX1590C

4.68 x 3.68 x 2.21
12.45
11.35
BOX1590D

7.39 x 4.70 x 2.06
21.25
18.75
BOX1590E

7.39 x 4.70 x 3.21
21.50
18.85
BOX1590F

7.39 x 7.37 x 2.66
28.95
25.15
BOX1590G

3.94 x 1.97 x 0.96
7.70
7.05
BOX1590WHF
Watertight seal with mounting flange
2.00 x 1.50 x 1.20
10.95
10.15
BOX1590WSF
Watertight seal with mounting flange
4.30 x 3.20 x 1.70
20.80
19.60
BOX1590WP1F
Watertight seal with mounting flange
6.01 x 3.24 x 1.81
20.80
19.60
BOX1590WQF
5.8 x 4.6 x 1.5
19.80
18.60
BOX1590WTF
4.74 x 3.13 x 2.17
15.70
14.80


Plastic Project Boxes with Aluminum Top
PCB Sold Separately

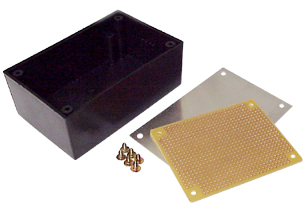

BOX8921 shown with PCB8921
Part # Matching PCB  & Price Ea. Dimensions
W" x D" x H" 		Price Each
1-9 10-up
BOX8921
PCB8921
$  .95
2.75 x 1.75 x 1.125
$  2.10
$  1.75
BOX8922
PCB8922
1.00
3.25 x 2 x 1.375
2.40
1.95
BOX8923
PCB8923
1.10
4.25 x 2.75 x 1.5
2.95
2.45
BOX8924
PCB8924
1.30
5.25 x 3.25 x 1.5
3.75
3.10





Price and availability subject to change without notice.
