RF Parts Company Accessories for Coax Cable and Connectors

On this page


	Cable Rack Strain Relief Boot Cable Heat Shrink Tubing Crimp Handles Standard & Precision Die Sets Crimping Tool & Die Kits Cable Strippers & Prep Tools	Flexible 6' Jumper Cable Copper Grounding Strap 50 Ohm Broadband Coaxial Switches Connector Sealant Heat Shrink Tubing

	Other Cable Accessory Links Grounding Supplies

Photos
(photos are not to scale)

Part Number

Description / Notes

Price Each

Coax Cable Rack

Cable not supplied.

RFW-1999

• Rugged wire construction

• Keep work area clutter free

• Keep cables organized & tangle free

• 11” long rack with ten slots

$14.95

Strain Relief Boot

PT4015-05-BK

Cable Group: X (RG8/X, LMR240)
Color: Black
Mfg:. RF Industries

(1-9) $ .40 ea.
(10-24) $ .36 ea.
(25-99) $ .30 ea.
(100-up) $ .28 ea.

PT4015-03-BK

Cable Group: C (RG58/U, LMR195)
Color: Black
Mfg:. RF Industries

(1-9) $ .40 ea.
(10-24) $ .36 ea.
(25-99) $ .30 ea.
(100-up) $ .28 ea.

60015-000

Cable Group: C (RG58/U, LMR195)
Color: Black
Mfg:. Amphenol

(1-9) $ .40 ea.
(10-24) $ .36 ea.
(25-99) $ .30 ea.
(100-up) $ .28 ea.

60030-000

Cable Group: D, X (RG59/U, RG8/X, LMR240)
Color: Black
Mfg:. Amphenol

(1-9) $ .40 ea.
(10-24) $ .36 ea.
(25-99) $ .30 ea.
(100-up) $ .28 ea.

60052-000

Cable Group: B, B1(RG174, LMR100)
Color: Black
Mfg:. Amphenol

(1-9) $ .30 ea.
(10-24) $ .25 ea.
(25-99) $ .22 ea.
(100-up) $ .18 ea.

Cable Heat Shrink Tubing

Individual Lengths
• Shrink Ratio: 50% more in the radial direction • Operating Temperature: -55º C to 125º C • Flammability: UL VW-1 (Jacket Only) • Minimum Shrink Temperature: 90º C	1625W is designed for general purpose applications such as the insulation and strain relief of electrical connections and terminations, light-duty harnessing, jacketing and bundling. Adhesive lining forms an environmental seal that helps protect against moisture.

Part #	Inside Diameter (In.)	Price per stick (1 stick = 4 feet)
Part #	Inside Diameter (In.)	1-4	5-24	25-up
GSHS-1/8	1/8	$ 3.30	$ 2.70	$2.40
GSHS-3/16	3/16	3.80	3.30	3.00
GSHS-1/4	1/4	4.30	3.70	3.30
GSHS-3/8	3/8	5.80	5.00	4.40
GSHS-1/2	1/2	6.50	5.50	4.80
GSHS-3/4	3/4	8.50	7.50	6.50
GSHS-1	1	11.90	12.50	9.60
GSHS-1.5	1.5	17.50	15.90	14.50

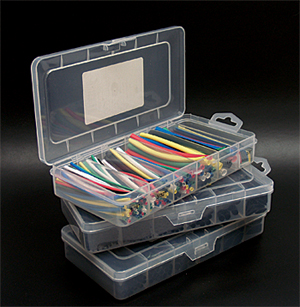

Box Sets with Pre-Cut 4" Pieces

Part #	Inside Diameter (In.)	Pieces per Kit	Color	Price / Kit
HST160BLK	1/16" - 3/8"	160	BLACK	$ 11.95
HST160COLOR	1/16" - 3/8"	160	ASST. COLORS	11.95
DWHST62	1/8" - 3/4"	62	BLACK	14.95

CoaxWrap™ Non-Adhesive Silicone Tape & Connector Sealant

Self Fusing: Sticks/Bonds only to itself.

No Adhesive: Leaves no residue.

Stretches up to 300%: Conforms to irregular shapes

Withstands Exposure: Wont melt up to 500F (260C), stays flexible to -60F (-50C), forms an air and water tight seal, protects against corrosion, insulates to 8000 volts, and is resistant to UV breakdown.

Click here for CoaxWrap™ pricing & packaging options

Coax-Seal Connector Sealant

		Just wrap the connection with a strip of Coax-Seal,
		and then mold it into place. That's it!

Click here for Coax-Seal pricing & packaging options

Crimp Handles and Die Sets
A la Carte

RFA-4005-20 Crimp Handle

47-10000 Crimp Handle

RFA-4005-20

Part Number: RFA-4005-20

List: $57.83
Your Cost: $43.45

The RFA-4005-20 crimp handle is precision manufactured of high-carbon, heat-treated, stamped steel and designed for smooth and rapid die closure. A simple pressure adjustment resets the scissors ratchet mechanism to compensate for different crimp dies and crimp forces. When the correct die is used, the full cycle ratchet will not release until a clean and tight crimp is achieved. Should a mismatch occur, the disengagement lever quickly releases the ratchet mechanism.

RFA-4005-20

Part Number: 47-10000

Price: $49.95

Die Sets for RFA-4005-20 and 47-10000

Description	Part Number / Price	Description	Part Number / Price
RG-58/U, RG-59/U, RG-142/U, RG-223/U, RG-400/U, RG-8X, LMR195, LMR240, Proflex and various video cables, cavity dimensions: .052", .068", .100", .213" and .255"	RFA-4005-01 47-20025 Price: $24.50 ea.	213", .178", .068", .042", for RG-58/U, RG-174/U, RG-316/U Coax Connectors (RFI Cable Groups B and C)	RFA-4005-07 47-20002 Price: $24.50 ea.
RG-8/U, RG-213/U, RG-214/U, and Belden 9913 cables, cavity dimensions: .100", .128" & .429". The .128" cavity crimps the center pin on Belden 9913 cable.	RFA-4005-02 Price: $24.50 ea.	324", .255", .068", .042", for RG-59/U and Belden 8281 Coax Cable (RFI Cable Groups D and G)	RFA-4005-08 47-20001 Price: $24.50 ea.
228", .068", .305", for RG-58/U, RG-59/U, RG-62/U and Cambridge Connectors Series CP-88 & CP-89	RFA-4005-04 Price: $24.50 ea.	.178", .128", .068", for RG-174/U, RG-188/U, RG-316/U and Mini 59/U Coax Connectors (RFI Cable Group B)	RFA-4005-09 47-20004 Price: $24.50 ea.
255", .324", .354" for RG-59/U, RG-6/U, and F-Type (CATV) Coax Connectors	RFA-4005-06 47-20026 Price: $24.50 ea.	080", .100", .429" for RG-8/U, RG-11/U and RG-213/U, RG-393/223 (RFI Cable Group E)	RFA-4005-10 47-20003 Price: $24.50 ea.
		Belden 9913, LMR®-400, WBC-400 (RFI Cable Group I); .429", .118" hex cavities	RFA-4005-14 47-20025 Price: $24.50 ea.

Professional Grade Crimp Tool
& Precision Dies

Heavy Duty Crimp Handle

The RFA-4009-20 is a piston-type crimper that offers considerably more compression when installing larger ferrules. The smooth ratcheting mechanism will not release until the ferrule is completely crimped. This tool will accommodate the popular low loss .6" diameter cable.

• Steel piston ratcheting

• Cushion grip handle

• Blue anodized finish

• Weight: 1.3 lb.

• Equivalent to M22520/5-01

• Designed for ease of crimping

• Easier compression on larger ferrules

• Auto release when crimp complete

• Tool for quick die removal

• Accommodates up to LMR-600 or other
.6-inch low loss cable

Part Number: RFA-4009-20

Price: $214.90


Hex Cavity

Part Number / Price

.610"

RFA-4009-01

$78.50

.042"
.068"
.255"

RFA-4009-03

$78.50

.068"
.130"
.178"

RFA-4009-04

$78.50

.100"
.118"
.429"

RFA-4009-05

$78.50

.068"
.100"
.213"

RFA-4009-06

$78.50

Crimp Tool & Die Combo Sets

Sets for use with LMR400		Set for use with LMR600
Crimper comes with RFA-4005-14 die installed. Specifically for use with LMR400/9913, RG-8/U or RG-213/U cable.	Crimper comes with die installed. Specifically for use with LMR400 cable.	Crimper comes with die installed. Specifically for use with LMR600 cable.

Part Number: RFA-4005-314 List: $69.95 Your Cost: $59.95	Part Number: 47-10210 Price: $74.95	Part Number: 47021 Price: $87.95

Industrial Grade
Crimping Tool and Die Kits


Part Number

Specifications

Price Ea.

Basic
Industrial Grade Kit

RFA-4005 Basic Crimp & Die Kit

RFA-4005

The RFA-4005 is supplied with one RFA-4005-020 crimping tool frame and two die sets, the RFA-4005-01 and the RFA-4005-02. All contained in a durable, padded, self-storage case.

Regular List: $141.68

Special: $109.95

Deluxe
Industrial Grade Kit

RFA-4005-501 Deluxe Crimp & Die Kit

RFA-4005-501

The RFA-4005-501 is supplied with one RFA-4005-20 crimping tool frame, dies RFA-4005-01,
-02, -05, -06, -07 & -10.
All come contained in a blue, durable, foam-lined storage case.

174.95

Deluxe
Industrial Grade Kit with Stripping Tool

RFA-4005-520 Deluxe Kit with Cable Stripping Tool

RFA-4005-520

This versatile & economical kit contains:

• Ratchet crimp handle

• Coaxial stripper

• 10 changeable die sets for crimping hex cavities from 0.042 to 0.429 inch across the flats

• Crimps most coaxial connectors and contacts

• Rugged, foam-lined case

269.95

Commercial Grade
Crimping Tool and Die Kit

1505

The 1505 is a complete crimping tool kit ideal for the field technician, 2-way radio installer, small production cable assembly, etc.

Kit includes Ratcheting Crimp Handle, Coax Cable Stripper, Cutter, and 5 seperate Connector Dies to crimp most connectors on the market today. Hard plastic carrying case included.

(Note: Not recommended for heavy industrial use.)

$99.95

Professional Grade
Crimping Tool and Die Kits


Part Number

Specifications

Price Ea.

2-Die
Professional Grade Kit

RFA-4009 Industrial Grade Crimp & Die Kit

RFA-4009

• Professional steel piston ratcheting crimp tool

• Two most popular die sets

• Crimps most LMR-100 to LMR-600 size connectors

• Tool for quick die removal

• Rugged, foam-lined case

$350.00

6-Die
Professional Grade Kit

RFA-4009-200 Industrial Grade Crimp & Die Kit

RFA-4009-200

This kit contains everything in the RFA-4009, plus an additional four dies.

• Professional steel piston ratcheting crimp tool

• All six die sets

• Crimps most LMR-100 to LMR-600 size connectors

• Tool for quick die removal

• Rugged, foam-lined case

$579.00

Coax Cable Strippers and Prep Tools

DBT-U

Deburring Tool for use with LMR-400 and LMR-600

• Deburrs center conductor on both 50 and 75 ohm hardline cables
• Works on both copper and copper cladded aluminum
• Large plastic screwdriver type handle provides exact leverage while rotating the tool

52.95

RFA-4215

Wire Stripper / Cutter

Strips 10-22 AWG

10.95

RFA-4205

Deburring Tool for use with LMR-400 and LMR-600

For copper & aluminum cable up to 2 AWG.

15.95

Adjustable 3-Blade Cable Strippers

RFA-4087

This coax stripping tool has the sturdy construction of a zinc diecast body, and adjustable SK-5 blade for two or three step stripping lengths from 4.9mm to 11mm.
For RG-8 , 213, 214, 9913, LMR-400 & LMR-400UF

$ 48.90

RFA-4087-R14

Replacement blades for RFA-4087. Six per pack.

10.80

639

RG-58/59/62/LMR-195

15.95

Preset Cable Strippers

For Times connectors only

CST-240

LMR240 Crimp and Clamp style connectors.

84.95

CST-400

LMR400 Crimp and Clamp style connectors.

84.95

CST-600

LMR600 Crimp and Clamp style connectors.

84.95

CST-01

Replacement Blade Kit for CST-400 and CST-600.
Includes (4) Button HD and (1) SOC HD Cap Screws, (1) #667H Blade, (5) #273 Blades, 1/16 and 1/32 Hex Wrenches.

36.95

For RF Industries RFN-1006-3I and LMR-400

RFA-4400-1

Easily cut jacket, braid and dielectric in one step. No stripping guesswork.

For use with LMR-400 and RFN-1006-3I
Type-N (M) Connector only.

42.95

RFA-4400-01C

Replacement blade cartridge for RFA-4400-1

12.95

RFA-4420

- Durable plastic body.
- Fits comfortably in either hand.
- Integrated bevel tool.
- Long lasting reversible teeth.
- Cleans away jacket and dielectric without scoring.
- Scrapes bonded dielectric from center conductors.
- Bevels and removes burrs from center conductor with one twist!

59.95

RFA-4420-RB

Replacement blades for RFA-4420

16.95

Flexible 6' Jumper Cable

Jumper1

Amphenol connectors attached to each end of RG58A/U coax:
1 BNC (male), and 1 PL-259.

VSWR 1.1:1 @ 150 MHz (typical).

Ideal for connection between handy talkie and linear, wattmeter, antenna.

Made in U.S.A.

$9.95

Copper Grounding Strap

STRAP-CU1.125

Copper strap; 1-1/8" wide, .006" thick.

10' strip: $9.00 ea.
25' strip: $18.75 ea.

212177

10 Foot Ground Strap made of tinned copper. 1" wide, comes with lugs.
FCSM: 11375

10" strip: 24.95 ea.

(Same material as photo above, with unfinished/cut ends)

FGB-1/2

Tinned Copper Braid, 1/2" wide.
Sold by the foot, 10' minimum.

(10-99) $0.58
(100-499) $0.54
(500-up) $0.50

FGB-3/4

Tinned Copper Braid, 3/4" wide.
Sold by the foot, 10' minimum.

(10-99) $1.12
(100-499) $1.04
(500-up) $0.97

Bare Copper, ideal for RF tank coils and connecting wires, ground leads, DC bus bars in solid state linears, etc.
This strap has rounded corners. Large quantity available.

		Dimensions/Inches	Price/foot*
Part #	Width-inch	Thickness-inch	5’-49’	50’-199’
3TW	.145	.081	$ .25	$ .20
11TW	.185	.093	.40	.35
12TW	.164	.084	.45	.40

* 5' minimum

Broadband 50 Ohm Coax Switches

Part Number	Switch Positions	Connectors¹	VSWR	Insertion Loss	Isolation dB	Power Watts	Price Ea.
CX210A	2	SO-239	<1.05 (0-500 mhz) <1.1 (500-1000 mhz)	<0.05 db <0.1 db	>70 dB (0-200 MHz) >60 dB (200-1000 MHz)	1500	$49.95
CX210N	2	Type-N	<1.05 (0-500 mhz) <1.1 (500-1000 mhz) <1.15 (1000-2000 mhz) <1.2 (2000-3000 mhz)	<0.05 db <0.10 db <0.15 db <0.2 db	>70 dB (0-200 MHz) >60 dB (200-1000 MHz) >55 dB (1000-2000 MHz) >50 dB (2000-3000 MHz)	1500	79.95
CX310A	3	SO-239	<1.1 (0-500 mhz) <1.2 (500-800 mhz)	<0.1 db <0.15 db	>60 dB (0-500 MHz) >50 dB (500-800 MHz)	Note ²	89.95

Notes:
¹ SO-239 connectors used in switches are special low VSWR 50W design.
² 1500w (0-30 MHz), 1000w (30-150 MHz), 500w (150-800 MHz)
