RF Parts Company

Andrew Heliax Cable
• Minimum Order: $25.00 in Parts
• Product Returns are subject to 15% Re-stock fee.



AVA5-50

AVA5-50 — 50 ohm

AVA5-50

FXL-780 — 50 ohm


Heliax Coaxial Cable : 1/4" FSJ1 , LDF1 | 3/8" FSJ2 , LDF2 | 1/2" FSJ4 , LDF4 , HL4RP | 5/8" LDF4.5 | 7/8" LDF5 , AVA5 , FXL-780 | 7/8" LDF6-50 | LDF7-50A | AVA7-50

Heliax Accessories | Heliax Specials | Coaxial Cable
Cable Information
Download PDF  AVA5-50, HELIAX® Andrew Virtual Air™ Coaxial Cable, 7/8” Corrugated Copper, Black PE Jacket
Download PDF  FXL-780, HELIAX® Andrew Flexible Coaxial Cable, smoothwall aluminum, 7/8 in, black PE jacket
Characteristics
Construction Materials   Dimensions
  AVA5-50 FXL-780     AVA5-50 FXL-780
Jacket Material PE PE   Nominal Size 7/8 in. 7/8 in.
Outer Conductor Material Corrugated Copper Aluminumr   Cable Weight 0.30 lb/ft
0.45 kg/m 		0.25 lb/ft
0.37 kg/m
Dielectric Material Foam PE Foam PE   Diameter Over Dielectric 0.950 in
24.130 mm
Flexibility Standard Standard   Diameter Over Jacket 1.100 in
27.940 mm 		1.100 in
27.940 mm
Inner Conductor Material Copper tube Copper tube   Inner Conductor OD 0.370 in
9.398 mm 		0.370 in
9.398 mm
Jacket Color Black Black   Outer Conductor OD 1.00 in
25.400 mm 		1.00 in
25.400 mm
Electrical Specifications   Environmental Specifications
  AVA5-50 FXL-780     AVA5-50 FXL-780
Cable Impedance 50 ohm ± 1 50 ohm ± 1   Installation Temperature -40°F to +140°F
-40°C to +60°C
Capacitance 22 pF/ft
73 pF/m 		    Operating Temperature -67°F to +185°F
-55°C to +85°C
dc Resistance, Inner Conductor (ohms) 0.410/kft
1.435/km 		    Storage Temperature -94°F to +185°F
-70°C to +85°C
dc Resistance, Outer Conductor (ohms) 0.340/kft
1.116/km
dc Test Voltage 6000 V     Mechanical Specifications
Inductance (µH) 0.056/ft
0.184/m		     Bending Moment 14.0 ft lb
19.0 N-m
Insulation Resistance 100000 MOhm     Flat Plate Crush Strength 75.0 lb/in
1.3 kg/mm
Jacket Spark Test Voltage (rms) 8000 V     Minimum Bend Radius, Multiple Bends 10.00 in
255.00 mm 		8.00 in
203.20 mm
Operating Frequency Band 1-5000 MHz 5.3 GHz   Minimum Bend Radium, Single Bend 5.00 in
127.00 mm
Peak Power 91.0 kW 86.0 kW   Number of Bends, minimum 15
Pulse Reflection 0.5%     Number of Bends, typical 30
Velocity 91% 88%   Tensile Strength 350 lb
159kg
Standard Conditions   Return Loss
  AVA5-50 FXL-780     AVA5-50 FXL-780
Attenuation, Ambient Temperature 68°F
20°C		     806-960 MHz VSWR 1.13
24.30 dB
Average Power, Ambient Temperature 104°F
40°C		     1700-2000 MHz VSWR 1.13
-24.30 dB
Average Power, Inner Condurtor Temperature 212°F
100°C



Attenuation & Average Power
Frequency
MHz 		Attenuation
dB/100 ft. 		Attenuation
dB/100 m 		Average
Power, kW
0.5
0.023
0.078
91.00
1
0.033
0.108
77.97
1.5
0.04
0.132
63.61
2
0.046
0.153
55.06
10
0.105
0.343
24.48
20
0.149
0.487
17.23
30
0.183
0.599
14.02
50
0.237
0.777
10.81
88
0.317
1.039
8.08
100
0.338
1.11
7.57


Price per Foot
Photo Data Sheet Part Number

Description

 10-24
ft. 		25-49
ft. 		50-99
ft. 		100-499
ft. 		500 +
ft.
Andrew Corp. Logo
AVA5-50
Download PDF
AVA5-50
7/8" Corrugated Copper
 6.50 6.25 5.95 5.75 5.60
Andrew Corp. Logo
AVA5-50
FXL-780
7/8" Aluminum
3.25 2.95 2.80 2.65 2.50
Connectors for 7/8" Heliax
Photo Data Sheet Part Number Description Price Ea.
Andrew Corp. Logo
A5PE78-RCN

AL5E78-PS
7/8" EIA FLANGE
 $ 169.95
Download PDF Installation Instructions for 7/8" Positive Stop Connectors
Andrew Corp. Logo

AL5NF-PSA
Type N Female Positive Stop
 35.95

Andrew Corp. Logo
A5TNM-PS

AL5NM-PSA
Type N Male Positive Stop
 35.95
Andrew Corp. Logo

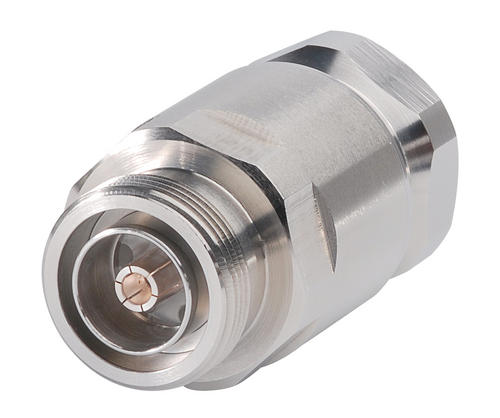

AL5DF-PS

AL5DF-PSA
716 DIN Female Positive Stop
 35.95
Andrew Corp. Logo

AL5DM-PS
716 DIN Male Positive Stop
 35.95
Andrew Corp. Logo

78EZ-DF
716 DIN FEMALE, EZ FIT
 35.95
Andrew Corp. Logo

78EZ-DM
716 DIN MALE, EZ FIT
 35.95
Andrew Corp. Logo

78EZ-NF
TYPE-N FEMALE, EZ FIT
 35.95
Andrew Corp. Logo

78EZ-NM
TYPE-N MALE, EZ FIR
 35.95
Accessories for 7/8" Heliax
Photo Data Sheet Part Number Description Price Ea.
Andrew Corp. Logo
Sureground Grounding Kit

CSGL5-15B4T
Grounding Kit, for 7/8" Coaxial Cable
37.95
Andrew Corp. Logo
42396A


42396A-5
Hanger Kit for 7/8" Coaxial Cable, 10/Pkg.
28.95
Andrew Corp. Logo
Hoisting Grip

L5SGRIP
Hoisting Grip for 7/8"Heliax
 32.95
Andrew Corp. Logo
CPTL6




CPT78U
EASIAX PLUS Automated Cable Prep Tool for 7/8" Coaxial Cable
269.95

CPT-BK5
REPLACEMENT BLADES FOR CPT-78U, 5/PKG.
 69.95
Andrew Corp. Logo
MCPT-1412

MCPT-78
EASIAX Prep Tool for 7/8" Coaxial Cable
34.95

MCPT-BK5
REPLACEMENT BLADES FOR MCPT-78, 5/PKG.
 12.95


Heliax Coaxial Cable : 1/4" FSJ1 , LDF1 | 3/8" FSJ2 , LDF2 | 1/2" FSJ4 , LDF4 , HL4RP | 5/8" LDF4.5 | 7/8" LDF5 , AVA5 , FXL-780 | 7/8" LDF6-50 | LDF7-50A | AVA7-50

Heliax Accessories | Heliax Specials | Coaxial Cable



Price and availability subject to change without notice.
