Cable Information |
| Standard Superflexible Cable |

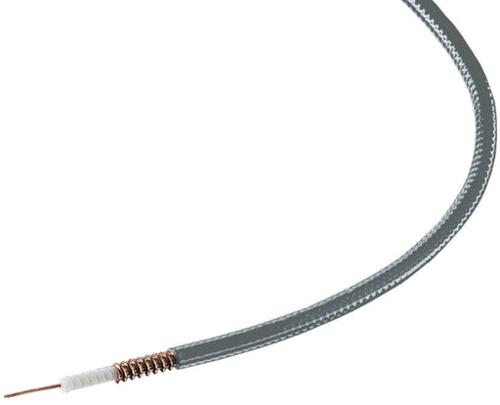

FSJ1-50A |
|
Fire Retardant Cables |
FSJ1RK-50B |
| 1/4” Standard Cable, Standard Jacket |
|
1/4” Fire Retardant Jacket, black (CATVR or CATVX) |
|
Characteristics
|
 |
|
Mechanical
|
| |
Outer Conductor |
Copper |
| |
Inner Conductor |
Cu-Clad AI |
|
Electrical
|
|
Diameter over Jacket, in (mm) |
0.29 (7.4) |
| Impedance, ohms |
50 ± 1 |
|
Diameter over Copper Outer Conductor, in (mm) |
0.25 (6.4) |
| Maximum Frequency, GHz |
20.4 |
|
Diameter Inner Conductor, in (mm) |
0.075 (1.9) |
| Velocity, percent |
84 |
|
Minimum Bending Radius, in (mm) |
1 (25) |
| Peak Power Rating, kW |
6.4 |
|
Cable Weight, lb/ft (kg/m) |
0.045 (0.067) |
|
Attenuation & Average Power
|
Frequency
MHz |
Attenuation
dB/100 ft. |
Attenuation
dB/100 m |
Average
Power, kW |
|
30
|
0.973
|
3.19
|
2.28
|
|
50
|
1.26
|
4.14
|
1.76
|
|
150
|
2.21
|
7.25
|
1.00
|
|
200
|
2.56
|
8.41
|
0.865
|
|
894
|
5.61
|
18.4
|
0.395
|
|
1500
|
7.41
|
24.3
|
0.299
|
|
2300
|
9.37
|
30.7
|
0.237
|
|
|
Price per Foot
|
| Photo |
Data Sheet |
Part Number |
Description |
10-24
ft. |
25-49
ft. |
50-99
ft. |
100-499
ft. |
500 +
ft. |
|
|
FSJ1-50A
|
1/4" Superflex |
2.05 |
1.85 |
1.70 |
1.58 |
1.55 |
|
|
FSJ1RK-50B
|
1/4" Superflex Fire Retardant |
Please contact us for current pricing. |
|
|
Connectors for FSJ1-50A
|
| Photo |
Data Sheet |
Part Number |
Description |
Price Ea. |
|
|
F1PNM-HC |
TYPE-N MALE, HEX |
$ 24.95 |
|
|
F1PNR-HC |
RIGHT ANGLE, TYPE-N MALE |
26.95 |
|
|
F1PNF |
TYPE-N FEMALE |
29.95 |
|
|
F1PNF-BHC |
TYPE-N FEMALE BULKHEAD |
29.95 |
|
|
F1TTM-C |
TNC MALE |
26.95 |
|
|
41WT |
TNC MALE
Limited Supply
|
14.95 |
|
|
F1PSM |
SMA MALE
Limited Supply
|
22.95 |
|
|
F1TSR |
SMA MALE, RIGHT ANGLE
Limited Supply
|
35.95 |
|
|
F1TSM-C |
SMA MALE |
33.95 |
|
|
F1TSF-BH |
SMA FEMALE BULKHEAD |
33.95 |
|
|
F1TBM-C |
BNC MALE |
22.95 |
|
|
F1TDM-C |
7/16 DIN MALE |
29.95 |
|
|
F1TDF |
7/16 DIN FEMALE |
48.95 |
|
|
F1PDF-BH |
7/16 DIN FEMALE BULKHEAD |
54.95 |
|
|
41SP |
PL-259 / UHF MALE
Limited Supply |
25.95 |
|
|
F1PNM-HF |
TYPE-N MALE
HF VERSION TO 18GHz
|
34.95 |
|
|
F1MU |
MINI-UHF MALE |
17.95 |
|
|
F1TSM-HF |
SMA MALE
HF VERSION TO 18GHz
|
39.95 |
|
|
Accessories for FSJ1-50A
|
| Photo |
Data Sheet |
Part Number |
Description |
Price Ea. |
|
|
223158-4 |
Grounding Kit w/2-hole lug for 1/4" & 3/8" |
24.95 |
 |
|
MCPT-1412 |
EASIAX Prep Tool for 1/4" and 1/2" |
24.95 |
| |
|
209874 |
Replacement Blades for MCPT-1412.
5 per package. |
11.95 |
|
|
CW10B |

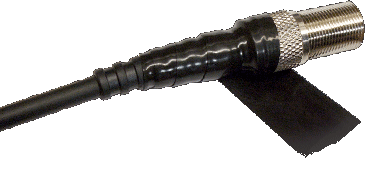

Non-adhesive silicone tape for sealing connectors.
10' Roll, black.
More colors and roll sizes |
5.95 |
| |
CW36B |
Non-adhesive silicone tape for sealing connectors.
36' Roll, black. More colors and roll sizes |
17.95 |
|
|
