Cable Information |
| Standard Cable |

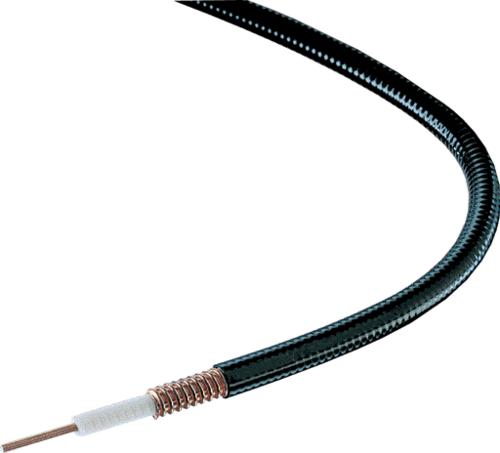

FSJ2-50 |
|
|
|
| 3/8” Superflex Cable, Standard Jacket |
|
|
|
Characteristics
|
 |
|
Mechanical
|
| |
Outer Conductor |
Copper |
| |
Inner Conductor |
Copper Clad Aluminum. |
|
Electrical
|
|
Diameter over Jacket, in (mm) |
0.415 (10.5) |
| Impedance, ohms |
50 ± 1 |
|
Diameter over Copper Outer Conductor, in (mm) |
0.375 (9.5) |
| Maximum Frequency, GHz |
13.4 |
|
Diameter Inner Conductor, in (mm) |
0.110 (2.8) |
| Velocity, percent |
83 |
|
Minimum Bending Radius, in (mm) |
1 (25) |
| Peak Power Rating, kW |
13.2 |
|
Cable Weight, lb/ft (kg/m) |
0.078 (0.12) |
|
Attenuation & Average Power
|
Frequency
MHz |
Attenuation
dB/100 ft. |
Attenuation
dB/100 m |
Average
Power, kW |
|
30
|
0.649
|
2.13
|
3.97
|
|
50
|
.842
|
2.76
|
3.06
|
|
150
|
1.48
|
4.86
|
1.74
|
|
200
|
1.72
|
5.65
|
1.49
|
|
894
|
3.82
|
12.5
|
0.673
|
|
1500
|
5.08
|
16.7
|
0.507
|
|
2300
|
6.47
|
21.2
|
0.398
|
|
|
Price per Foot
|
| Photo |
Data Sheet |
Part Number |
Description |
10-24
ft. |
25-49
ft. |
50-99
ft. |
100-499
ft. |
500 +
ft. |
|
|
FSJ2-50 |
3/8" Superflex |
2.95 |
2.75 |
2.55 |
2.48 |
2.38 |
|
|
Connectors for FSJ2-50
|
| Photo |
Data Sheet |
Part Number |
Description |
Price Ea. |
|
|
F2TNM-PL |
TYPE-N MALE HEX CONNECTOR |
$ 21.95 |
 |
|
F2PNF-C |
TYPE-N FEMALE |
24.95 |
|
|
F2PNF-BH |
TYPE-N FEMALE, BULKHEAD |
36.95 |
|
|
F2TDM-PL |
7/16 DIN MALE |
24.95 |
|
|
F2PDF-C |
7/16 DIN FEMALE |
21.95 |
|
|
F2PDR-C |
7/16 DIN MALE, RIGHT ANGLE |
32.95 |
|
|
Accessories for FSJ2-50
|
| Photo |
Part Number |
Description |
Price Ea. |
|
223158-4 |
Grounding Kit w/2-hole lug for 1/4" & 3/8" |
$24.95 |
|
MCPT-3812 |
EASIAX Prep Tool for 3/8 " and 1/2" |
24.95 |
| 209874 |
Replacement blades for MCPT-3812, 5/pkg. |
11.95 |
|
CW10B |
Non-adhesive silicone tape for sealing connectors.
10' Roll, black.
More colors and roll sizes |
5.95 |
| CW36B |
Non-adhesive silicone tape for sealing connectors.
36' Roll, black.
More colors and roll sizes |
17.95 |
|
|
