RF Parts Company

Andrew Heliax Cable
• Minimum Order: $25.00 in Parts
• Product Returns are subject to 15% Re-stock fee.



AVA7-50

AVA7-50 — 50 ohm

FXL-1873 — 50 ohm




Heliax Coaxial Cable : 1/4" FSJ1 , LDF1 | 3/8" FSJ2 , LDF2 | 1/2" FSJ4 , LDF4 , HL4RP | 5/8" LDF4.5 | 7/8" LDF5 , AVA5 , FXL-780 | 7/8" LDF6-50 | LDF7-50A | AVA7-50

Heliax Accessories | Heliax Specials | Coaxial Cable
Cable Information
Download PDF  AVA7-50, HELIAX® Andrew Virtual Air™ Coaxial Cable, 1-5/8” Corrugated Copper, Black PE Jacket
Download PDF  FXL-1873, HELIAX® Flexible Coaxial Cable, smoothwall aluminum, 1-5/8 in, black PE jacket
Characteristics
Construction Materials   Dimensions
  AVA7-50 FXL-1873     AVA7-50 FXL-1873
Jacket Material PE PE   Nominal Size 1-5/8 in. 1-5/8 in.
Outer Conductor Material Corrugated Copper Smoothwall Aluminum   Cable Weight 0.72 lb/ft
1.07 kg/m 		0.67 lb/ft
1.00 kg/m
Dielectric Material Foam PE Foam PE   Diameter Over Dielectric 1.750 in
44.450 mm 		-
Flexibility Standard Flexible   Diameter Over Jacket 2.010 in
51.054 mm 		1.980 in
50.292 mm
Inner Conductor Material Corrugated
Copper tube 		Copper   Inner Conductor OD 0.715 in
18.161 mm 		0.707 in
18.00 mm
Jacket Color Black Black   Outer Conductor OD 1.825 in
46.355 mm 		1.873 in
47.600 mm
Electrical Specifications   Environmental Specifications
  AVA7-50 FXL-1873     AVA7-50 FXL-1873
Cable Impedance 50 ohm ± 1 50 ohm ± 1   Installation Temperature -40°F to +140°F
-40°C to +60°C		 -40°F to +140°F
-40°C to +60°C
Capacitance 22 pF/ft
72 pF/m 		23 pF/ft
75.4 pF/m 		  Operating Temperature -67°F to +185°F
-55°C to +85°C		 -58°F to +157°F
-50°C to +70°C
dc Resistance, Inner Conductor (ohms) 0.410/kft
1.435/km 		0.370/kft
1.210/km 		  Storage Temperature -94°F to +185°F
-70°C to +85°C		 -67°F to +167°F
-55°C to +80°C
dc Resistance, Outer Conductor (ohms) 0.160/kft
0.525/km		 0.170/kft
0.560/km
dc Test Voltage 15000 V 9000 V   Mechanical Specifications
Inductance (µH) 0.055/ft
0.187/m		 0.159/ft
0.194/m		   Bending Moment 35.0 ft lb
47.5 N-m 		110.0 ft lb
149.1 N-m
Insulation Resistance 100000 MOhm 100000 MOhm   Flat Plate Crush Strength 90.0 lb/in
1.6 kg/mm 		220.0 lb/in
3.9 kg/mm
Jacket Spark Test Voltage (rms) 10000 V 10000 V   Minimum Bend Radius, Multiple Bends 15.00 in
381.00 mm 		17.50 in
444.50 mm
Operating Frequency Band 1-2700 MHz 1-2500 MHz   Minimum Bend Radium, Single Bend 8.00 in
203.20 mm		 11.00 in
279.40 mm
Peak Power 302.0 kW 315.0 kW   Number of Bends, minimum 15 15
Pulse Reflection 0.5% -   Number of Bends, typical 50 -
Velocity 92% 88%   Tensile Strength 400 lb
181 kg 		1500 lb
680 kg
Standard Conditions   Return Loss
  AVA7-50 FXL-1873     AVA7-50 FXL-1873
Attenuation, Ambient Temperature 68°F
20°C		 68°F
20°C		   800-2500 MHz - VSWR 1.10
26.40 dB
Average Power, Ambient Temperature 104°F
40°C		 104°F
40°C		   806-960 MHz VSWR 1.13
24.30 dB 		-
Average Power, Inner Condurtor Temperature 212°F
100°C

 212°F
100°C

   1700-2170 MHz VSWR 1.13
24.30 dB 		-
Attenuation & Average Power
Frequency
MHz 		Attenuation
dB/100 ft. 		Attenuation
dB/100 m 		Average
Power, kW
0.5
0.013
0.044
166.49
1
0.019
0.062
117.56
1.5
0.023
0.076
95.88
2
0.027
0.088
82.96
10
0.06
0.197
36.78
20
0.086
0.281
25.84
30
0.105
0.346
21.00
50
0.137
0.45
16.14
88
0.184
0.603
12.03
100
0.197
0.645
11.26


Price per Foot
Photo Data Sheet Part Number

Description

 10-24
ft. 		25-49
ft. 		50-99
ft. 		100-499
ft. 		500 +
ft.
Andrew Corp. Logo
AVA7-50
Download PDF
AVA7-50
1-5/8" Standard
16.25 15.75 15.25 14.75 14.25
Andrew Corp. Logo
FXL Series
Download PDF
FXL-1873
1-5/8" Aluminum
6.50 5.25 5.95 5.75 5.60
Connectors for 1-5/8"
Photo Data Sheet Part Number Description Price Ea.
Andrew Corp. Logo


AL7DF-PSA
716 DIN Female Positive Stop for 1-5/8" AVA7-50
159.95
Andrew Corp. Logo


AL7DM-PSA
716 DIN Male Positive Stop for 1-5/8" AVA7-50
159.95
Andrew Corp. Logo
A7TNM-PS

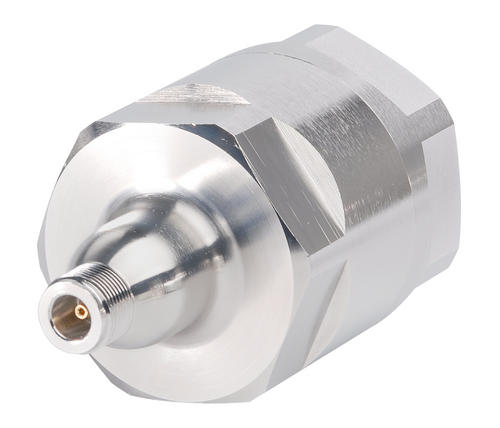

AL7NF-PSA
Type N Female Positive Stop for 1-5/8" AVA7-50
159.95
Andrew Corp. Logo

AL7NM-PS
Type N Male Positive Stop for 1-5/8" AVA7-50
159.95
Andrew Corp. Logo

AL7E78-PS
7/8" EIA Flange
 379.95
Andrew Corp. Logo

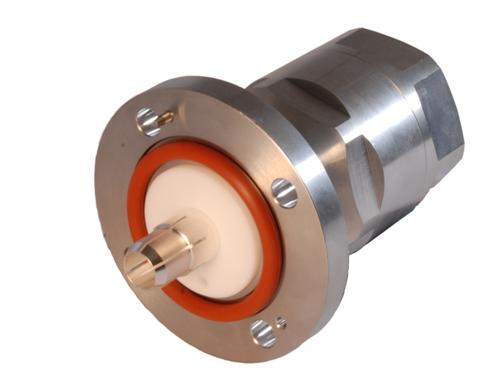

AL7E158-PS

AL7E158-PS
1-5/8" EIA Flange
459.95
Accessories for 1-5/8"
Photo Data Sheet Part Number Description Price Ea.
Andrew Corp. Logo
Sureground Grounding Kit

SG158-12B2U
SUREGROUND Grounding Kit, for 1-5/8"
 29.95

CSGL7-15B4
Compact SUREGROUND Grounding Kit, for 1-5/8"
 39.95
Andrew Corp. Logo
42396A


42396A-2
Hanger Kit for 1-5/8" Coaxial Cable, 10/Pkg.
32.95
Andrew Corp. Logo
Hoisting Grip

L7SGRIP
Hoisting Grip for 1-5/8"Heliax
 39.95
Andrew Corp. Logo
CPTL6




CPT158U
EASIAX PLUS Automated Cable Prep Tool for
1-5/8" Coaxial Cable
289.95

CPT-BK7
REPLACEMENT BLADES FOR CPT158U, 5/PKG.
 69.95


Heliax Coaxial Cable : 1/4" FSJ1 , LDF1 | 3/8" FSJ2 , LDF2 | 1/2" FSJ4 , LDF4 , HL4RP | 5/8" LDF4.5 | 7/8" LDF5 , AVA5 , FXL-780 | 7/8" LDF6-50 | LDF7-50A | AVA7-50

Heliax Accessories | Heliax Specials | Coaxial Cable



Price and availability subject to change without notice.
