Cable Information |
| Standard Cable |
LDF2-50 |
|
Fire Retardant Cable |
LDF2RK-50 |

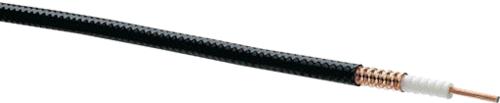

| 3/8” Standard Cable, Standard Jacket |
|

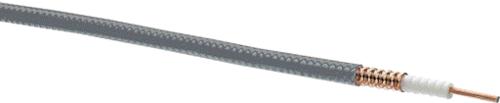

3/8” Fire Retardant Jacket (CATVR) |
|
Characteristics
|
 |
|
Mechanical
|
| |
Outer Conductor |
Copper |
| |
Inner Conductor |
Copper- Clad Aluminum |
|
Electrical
|
|
Diameter over Jacket, in (mm) |
.44 (11) |
| Impedance, ohms |
50 ± 1 |
|
Diameter over Copper Outer Conductor, in (mm) |
0.38 (9.7) |
| Maximum Frequency, GHz |
13.5 |
|
Diameter Inner Conductor, in (mm) |
0.122 (3.1) |
| Velocity, percent |
88 |
|
Minimum Bending Radius, in (mm) |
3.75 (95) |
| Peak Power Rating, kW |
15.6 |
|
Cable Weight, lb/ft (kg/m) |
0.08 (0.12) |
|
Attenuation & Average Power
|
Frequency
MHz |
Attenuation
dB/100 ft. |
Attenuation
dB/100 m |
Average
Power, kW |
|
30
|
0.557
|
1.83
|
5.75
|
|
50
|
0.724
|
2.38
|
4.42
|
|
150
|
1.28
|
4.21
|
2.49
|
|
200
|
1.50
|
4.91
|
2.14
|
|
894
|
3.38
|
11.1
|
0.947
|
|
1500
|
4.54
|
14.9
|
0.705
|
|
2300
|
5.83
|
19.1
|
0.549
|
|
|
Price per Foot
|
| Photo |
Data Sheet |
Part Number |
Description |
10-24
ft. |
25-49
ft. |
50-99
ft. |
100-499
ft. |
500 +
ft. |
|
|
LDF2-50A |
3/8" Heliax |
2.40 |
2.25 |
2.15 |
2.05 |
1.90 |
|
|
LDF2RK-50A |
3/8" Heliax Fire Retardant |
Please contact us for current pricing. |
|
|
Connectors for LDF2-50
|
| Photo |
Data Sheet |
Part Number |
Description |
Price Ea. |
|
|
L2TNM-PL |
TYPE-N MALE, HEX |
$19.95 |
| |
|
L42PW-P1 |
TYPE-N MALE, USED - CUT FROM ASSEMBLY, HAS PIGTAIL |
8.95 |
|
|
L2TNF-PL |
TYPE-N FEMALE, HEX |
21.95 |
|
|
L2TDM-PL |
7/16 DIN MALE |
24.95 |
|
|
L2TDF-PL |
7/16 DIN FEMALE |
24.95 |
|
|
L2TSM-PL |
SMA MALE |
16.95 |
|
|
L2TTM-PL |
TNC MALE |
21.95 |
|
|
L42ENT |
TNC FEMALE |
79.95 |
|
|
L2TNR-PL |
TYPE-N MALE, RIGHT ANGLE, HEX |
26.95 |
|
|
L2PNF-BH |
TYPE-N FEMALE, BULKHEAD |
67.95 |
|
|
L42P |
UHF MALE |
159.95 |
|
|
Accessories for LDF2-50
|
| Photo |
Data
Sheet |
Part Number |
Description |
Price Ea. |
|
|
223158-4 |
Grounding Kit with 2-Hole lug for 1/4" & 3/8" |
$24.95 |
|
|
CPT-E2L2N |
EASIAX AUTO PREP TOOL , LDF2, N TYPE |
269.95 |
| |
Replacement Blades for CPT-BKS1, 5/pkg. |
|
|
| |
|
|
|
|
|
MCPT-3812 |
EASIAX Prep Tool for 3/8 " and 1/2" |
24.95 |
|
| |
209874 |
Replacement blades for MCPT-3812, 5/pkg. |
11.95 |
|
|
CW10B |
Non-adhesive silicone tape for sealing connectors.
10' Roll, black.
More colors and roll sizes |
5.95 |
|
| CW36B |
Non-adhesive silicone tape for sealing connectors.
36' Roll, black.
More colors and roll sizes |
17.95 |
|
|
|
